Electric Motor Driven Volute Split Case Fire Pump
Product Introduction
Designed with an axially split volute casing,Purity PSCM horizontal split case fire pump allows easy access to internal components without disturbing the motor or piping, greatly simplifying maintenance and reducing downtime. Its double suction radial impeller is available in either AISI 304 stainless steel or HT250 cast iron, giving users flexible options to match different operating environments and performance needs.
To ensure exceptional durability,Purity PSCM electric split case fire pump body is constructed from HT250 cast iron and coated with a robust anti-corrosion layer. This protective coating significantly improves resistance to rust, wear, and chemical attack, ensuring reliable operation even in harsh or humid conditions. The split case structure further enhances hydraulic efficiency by optimizing flow distribution on both sides of the impeller, reducing axial forces and extending bearing life.
The sealing system is designed with user flexibility in mind. Purity PSCM centrifugal fire pump split case is equipped with a shaft protection sleeve in the seal area to reduce wear and prolong the service life of key components. Depending on the working conditions, users can choose between a mechanical seal for superior leak prevention or a packing seal for easy maintenance and cost-effective operation. Both sealing options deliver strong, dependable performance to maintain system safety.
With its rugged construction, efficient double-suction design, and easily maintainable split-case structure,Purity PSCM horizontal split case fire pump is ideal for municipal fire systems, high-rise buildings, industrial fire protection, and water transfer applications requiring reliable large-flow operation.
Purity supply fire fighting volute split casing pump to all over the world with more than 15 years exporting experience.Look forward to cooperating with you!

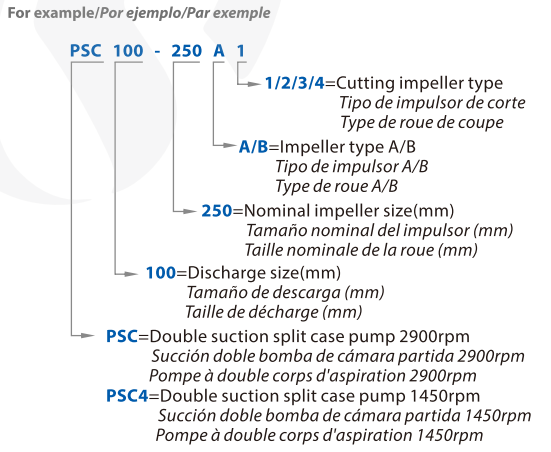

Model Description

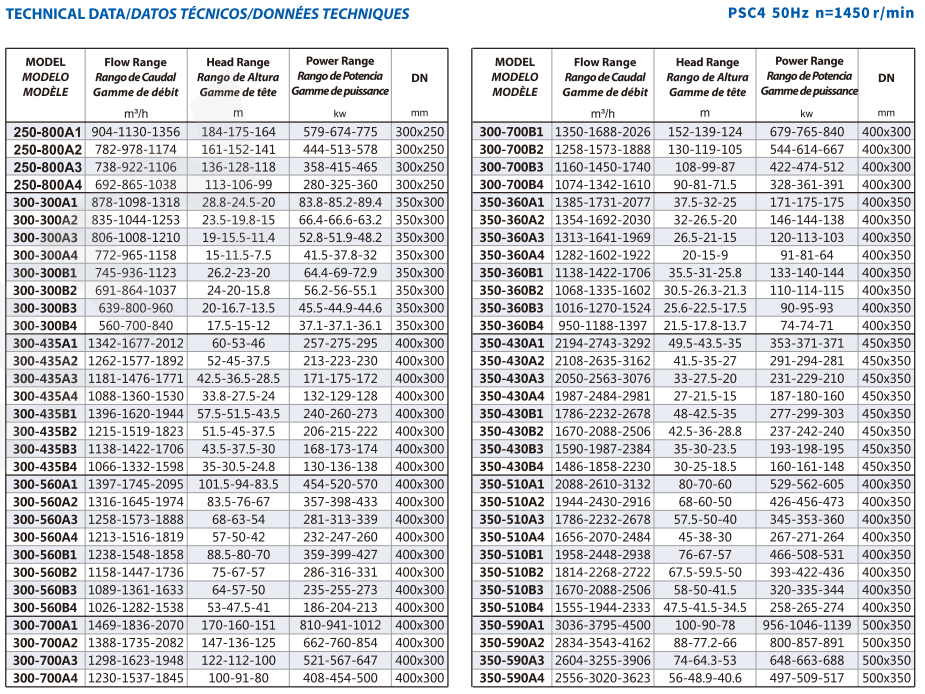

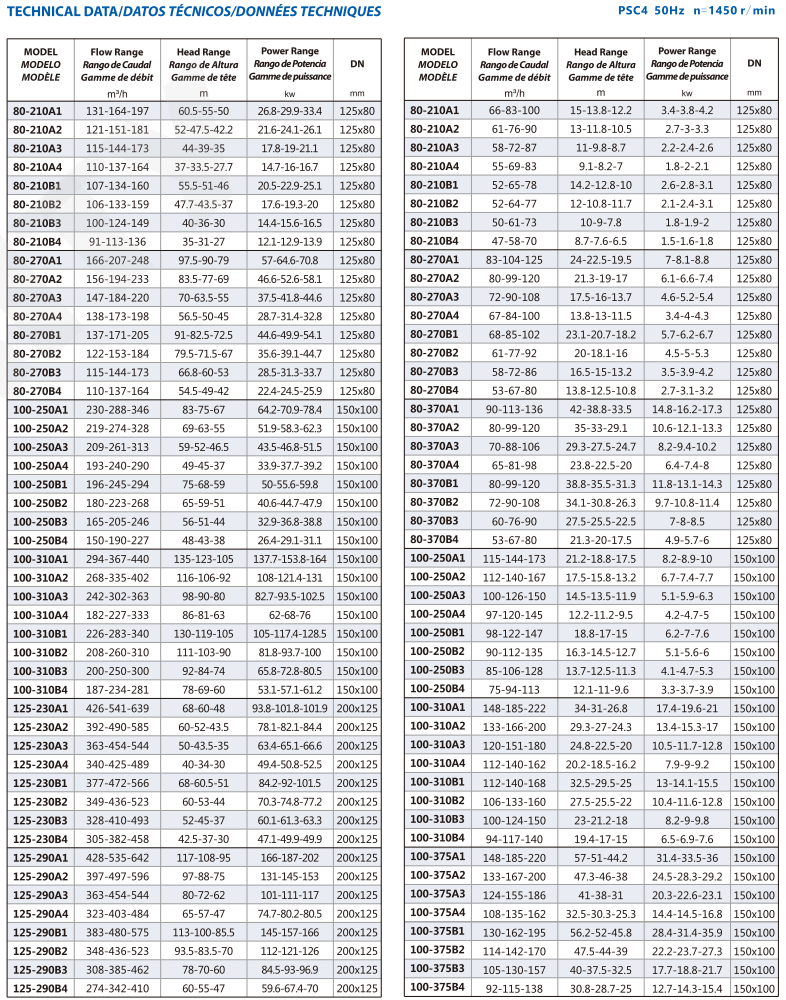

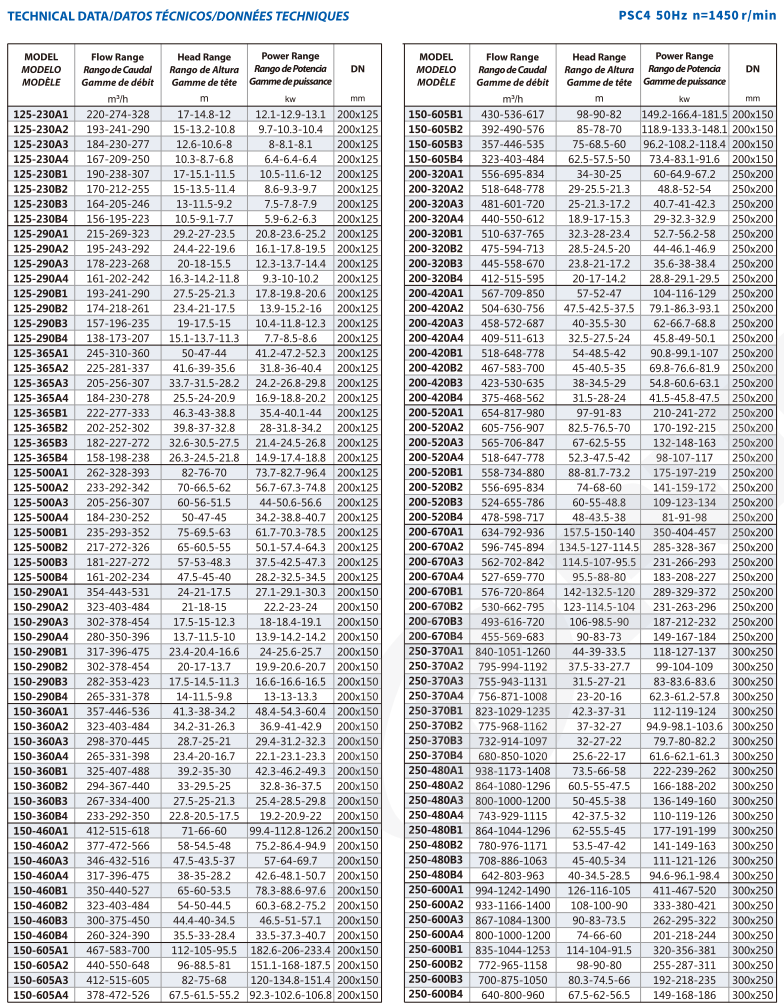

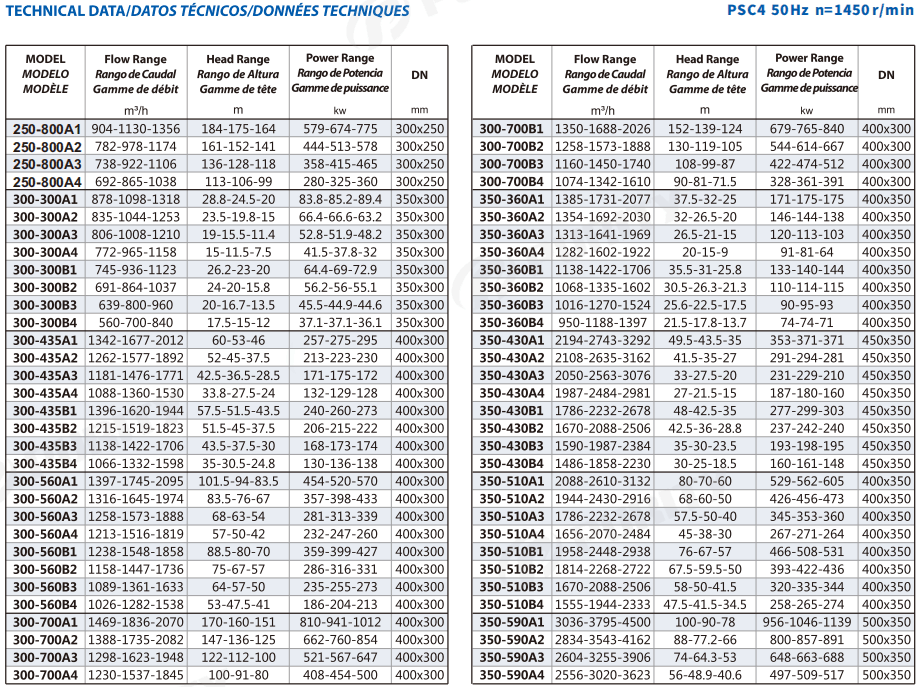

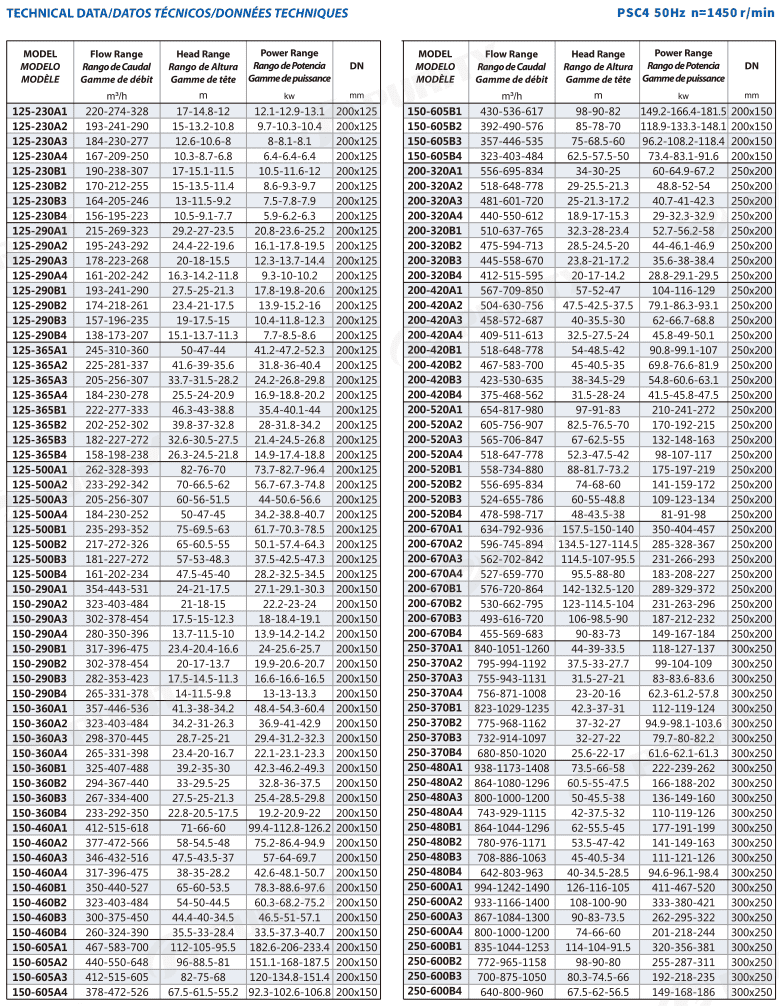

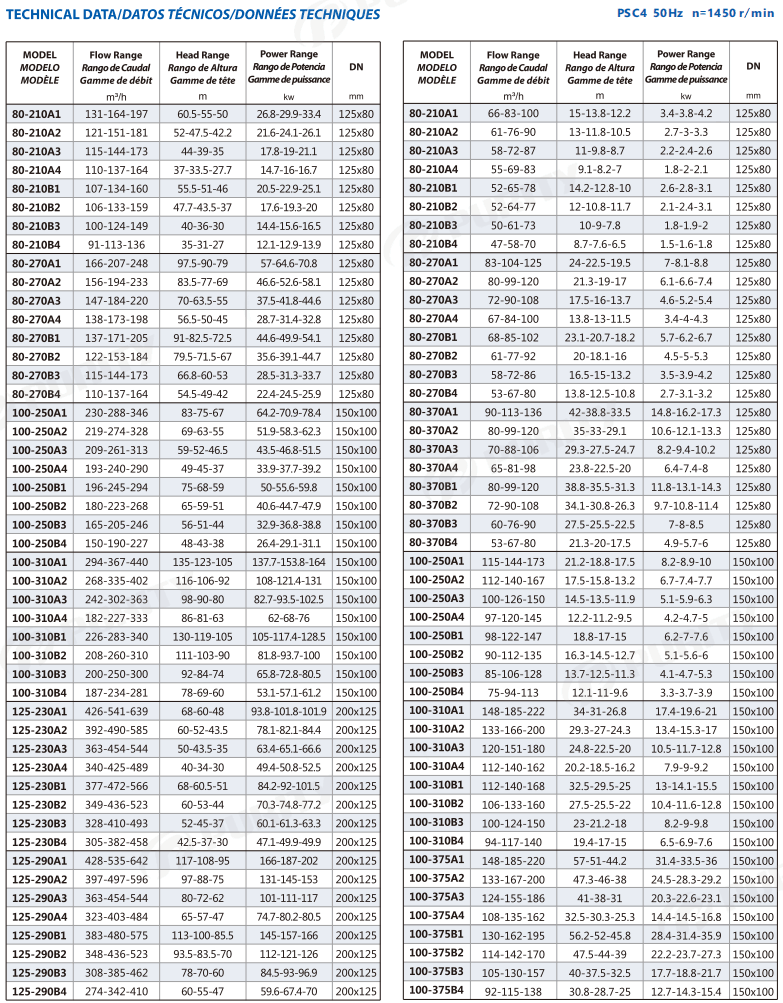

Product Parameters
