Explosion-proof Pipeline Horizontal Centrifugal Pump

Short Description:

Purity PGWB horizontal cexplosion-proof entrifugal pump features highly balanced impeller, and customizable components, ensuring enhanced safety, stable operation in complex working environments.

Send email to us

Product Detail

Product Tags

Product Introduction

One of the most important features of the Purity PGWB pipeline horizontal centrifugal pump is its explosion-proof motor configuration. The motor is designed in accordance with strict safety standards, and the explosion-proof junction box offers excellent sealing performance. This high level of enclosure effectively isolates the internal electrical components from external dust, moisture, and potentially hazardous gases, significantly reducing operational risks. As a result, the centrifugal pipeline pump can operate safely and reliably in workshops, industrial plants, and other locations with higher safety requirements.

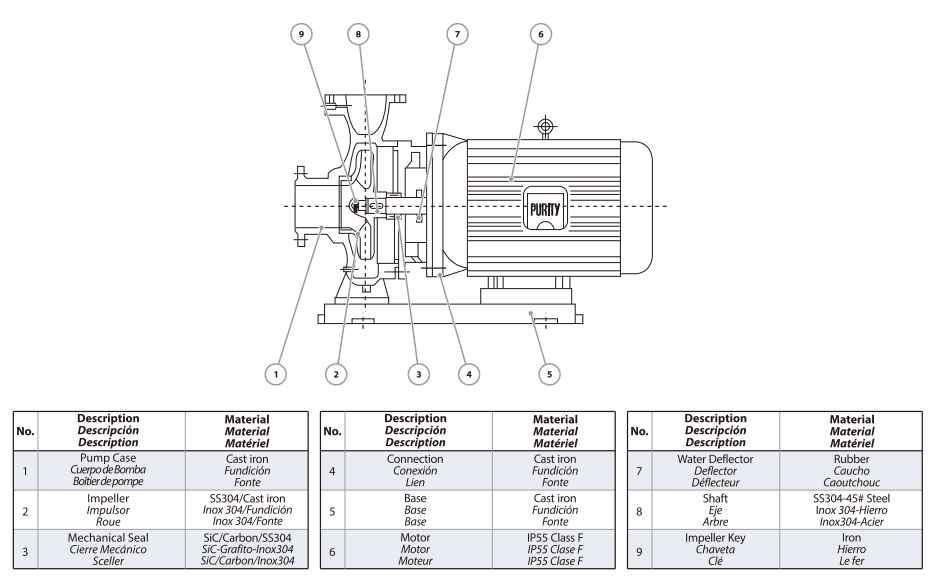

Purity PGWB explosion-proof pipeline horizontal centrifugal pump adopts a coaxial motor-pump design, in which the motor shaft is directly aligned with the pump shaft. By eliminating intermediate transmission components, the overall structure is simplified and made more compact. This design greatly improves shaft alignment accuracy and mechanical stability during operation. The precisely manufactured impeller exhibits excellent dynamic and static balance, ensuring smooth rotation and stable hydraulic performance. Consequently, the Purity PGWB hot sale pipeline centrifugal pump runs with minimal vibration and low noise, even during long-term continuous operation, providing a more comfortable and reliable working environment.

In terms of materials and sealing performance,Purity PGWB explosion-proof centrifugal pipeline pump offers high flexibility and durability. The impeller can be manufactured from cast iron or stainless steel, allowing users to select the most suitable material based on the working medium and application conditions. For the shaft sealing system, high-performance mechanical seal materials such as hard alloy and silicon carbide are used. These wear-resistant materials provide excellent sealing reliability, effectively preventing leakage while maintaining stable performance under varying pressure and temperature conditions.

Purity is a china pipeline centrifugal pump manufacturer,with 15 years of experience in the production and research and development of water pumps.Welcome to inquiry Purity Pump!
