When choosing a centrifugal pump for an industrial, municipal, or commercial system, the two most commonly compared types are the end suction centrifugal pump and the split case centrifugal pump. Understanding their structural differences, performance characteristics, installation conditions, and lifecycle costs is essential for ensuring efficiency, reliability, and long-term value. This guide summarizes key insights from three in-depth articles and presents a clear, engineering-focused comparison to help you select the most suitable pump for your application.
1. Fundamental Structural Differences
A horizontal end suction centrifugal pump features a single-stage impeller with fluid entering from one end of the pump and exiting from the top. It uses an overhung impeller supported by bearings on one side.
Key structural features:
✔Simple, compact design
✔Single suction inlet, single impeller
✔Smaller footprint and easier installation
✔Maintenance often requires removing the pump or disconnecting the pipeline
This design prioritizes simplicity and space savings.
Picture | Purity End Suction Pump PSM
A horizontal split casing centrifugal pump uses a horizontally split body, allowing easy access to the internal components without disturbing pipe connections. Most models use a double-suction impeller for balanced axial forces.
Key advantages:
✔High stability and low vibration
✔Easy inspection—top casing lifts off
✔Shorter downtime and reduced maintenance difficulty
This design emphasizes robustness, reliability, and serviceability.

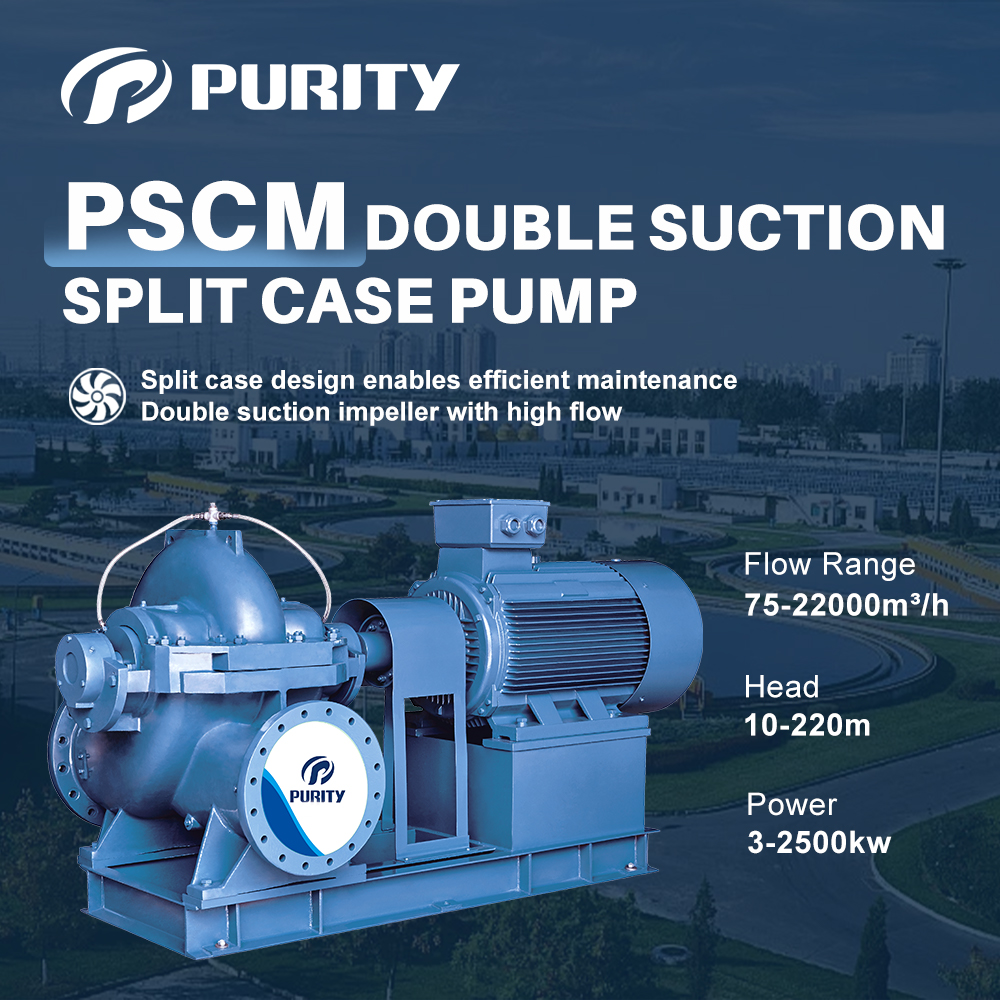

Picture | Purity Split Case Pump PSCM
2. Major Differences in Performance & Efficiency
End Suction Pumps
✔Best for low to medium flow and moderate head
✔Efficiency drops when flow fluctuates
✔Higher risk of cavitation due to single-suction design
✔Suitable for general building and light industrial applications
Split Case Pumps
✔Designed for high flow (>1000 GPM) and high pressure
✔Double-suction impeller greatly reduces cavitation
✔High hydraulic efficiency and lower long-term energy consumption
✔Ideal for continuous, 24/7 operation
Conclusion:
End suction pumps fit smaller, less demanding systems. Split case pumps excel in high-demand, heavy-duty applications with long operating cycles.
3. Application Differences Across Industries
Common Uses for End Suction Pumps
✔HVAC and chilled water systems
✔Building water supply
✔Light industrial processes
✔Small- to medium-scale irrigation
✔Facilities with limited installation space
Common Uses for Split Case Pumps
✔Municipal water supply networks
✔Industrial process cooling and long-distance water transfer
✔Power plant cooling systems
✔UL/FM fire protection systems
✔Continuous-duty pumping stations
End suction = commercial and small industrial
Split case = municipal, industrial, and mission-critical systems
4. Cost, Installation & Lifecycle Comparison
End Suction Centrifugal Pumps
✔Lower initial investment
✔Simple installation and small footprint
✔Higher maintenance frequency
✔Shorter lifespan under heavy loads
Split Case Centrifugal Pumps
✔Higher upfront cost and larger installation space
✔More robust foundation requirements
✔Easier long-term maintenance
✔Longer service life and lower lifecycle energy costs
End suction = short-term cost savings
Split case = long-term cost savings
5. Key Selection Criteria: How to Choose the Right Pump
When deciding between an end suction centrifugal pump and a split case centrifugal pump, consider:
✔ Flow & Pressure Requirements
High flow/high head → Split case
Medium/low flow → End suction
✔ Criticality & Downtime Costs
24/7 operation or critical systems → Split case
Non-critical systems → End suction
✔ Space Availability
Limited space → End suction
Large pump rooms → Split case
✔ Budget vs. Lifecycle Cost
Budget-sensitive projects → End suction
Long-term efficiency-focused projects → Split case
6. Why Choose Purity Pump?
Purity Pump offers a full range of centrifugal pumps, including end suction pumps, split case pumps, multistage pumps, and inline pumps.
Brand advantages include:
- Established in 2010 with a 60,000 m² modern facility
- Strong R&D capability and engineering support
- Over 130+ global certifications, including CE, ISO, and SASO
- Complete product portfolio to meet diverse applications
Purity Pump provides reliable, cost-effective pumping solutions for global HVAC, municipal, industrial, and fire protection markets.
Picture | Purity Pump Introduction
Conclusion
Choosing between an end suction centrifugal pump and a split case centrifugal pump requires a thorough understanding of system needs rather than relying solely on initial cost.
✔Choose an end suction pump for light-duty, compact, budget-sensitive applications
✔Choose a split case pump for high-flow, critical, continuous-duty systems where long-term efficiency and reliability are essential
By evaluating system flow, pressure, installation space, energy consumption, and maintenance resources, you can determine the pump type that delivers the best performance and lifecycle value.
Purity Pump is committed to providing dependable, high-quality pumping solutions and welcomes partners worldwide to join in global distribution opportunities.
