An end suction centrifugal pump is one of the most widely used types of centrifugal pumps in industrial, commercial, and residential applications. Designed for efficient fluid transfer, this pump features a suction inlet at the end of the pump casing and a discharge outlet typically positioned at a 90-degree angle to the inlet. The core components of an end suction centrifugal pump include the impeller, shaft, and volute casing. The impeller rotates at high speeds, generating centrifugal force that draws liquid into the pump and propels it toward the discharge outlet, while the volute casing ensures smooth and controlled fluid flow. This continuous process allows for reliable and efficient liquid transport.
Structure and Types of End Suction Centrifugal Pumps
Horizontal end suction centrifugal pumps are the most common configuration, featuring a horizontal shaft that drives the impeller. This traditional design is known for its simplicity and robust performance. Most single stage end suction centrifugal pumps are built with a single impeller, making them ideal for applications requiring moderate pressure and flow rates. The straightforward design ensures easy installation, operation, and maintenance, making these pumps highly popular across various industries.

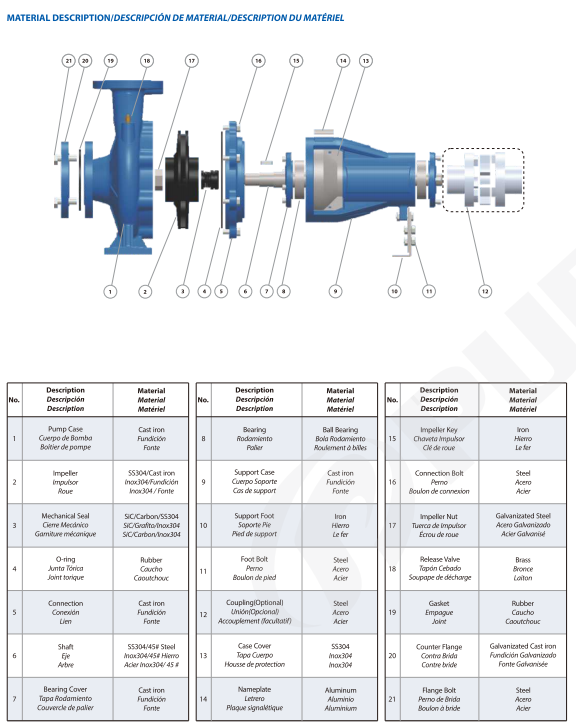

Picture | Purity End Suction Pump PSM Material Description
Advantages of End Suction Centrifugal Pumps
End suction centrifugal pumps offer multiple benefits that make them a preferred choice for many fluid transfer applications:
1.Reliability and Durability: Known for robust construction, these pumps maintain stable performance under diverse operating conditions, making them suitable for industrial, commercial, and residential use.
2.Cost-Effective: With a lower initial cost compared to other pump configurations, end suction centrifugal pumps are easy to install and maintain. Interchangeable parts simplify repairs, minimizing downtime and operational costs.
3.Versatility: These pumps can handle a wide range of fluids, including clean water, chemicals, wastewater, and liquids containing small solid particles.
4.Multi-Purpose Applications: From municipal water supply, HVAC systems, and fire protection to agricultural irrigation and industrial liquid handling, end suction centrifugal pumps serve a variety of functions.
5.Compact Design and Low Noise: Despite being horizontal pumps, their relatively small footprint allows for easy integration into existing systems. Advanced designs also reduce noise during operation, improving workplace comfort.
Applications of End Suction Centrifugal Water Pumps
End suction centrifugal water pumps are particularly suited for residential and commercial water supply, industrial liquid transport, and wastewater management. In residential systems, they efficiently pump water from a source to storage tanks or reservoirs. In industrial settings, they can handle chemical fluids, sewage, and other process liquids, maintaining stable performance even when small solids are present. Moreover, these pumps are widely used in fire protection systems to deliver water from fire pumps to sprinkler networks, ensuring safety and reliability.
Advantages of Purity PSM End Suction Centrifugal Pumps
The PSM series end suction centrifugal pump by Purity demonstrates several key advantages:
1.Optimized Inlet Design: The larger pump inlet allows sufficient water intake, reducing turbulence and cavitation, resulting in smoother and quieter operation.
2.Hydraulic Simulation Design: PSM pumps are engineered using hydraulic simulation technology, providing smooth performance curves and high efficiency.
3.Comprehensive Range: Available in multiple models, diameters, and power capacities, the PSM series can meet diverse customer requirements.
4.International Certification: PSM end suction pumps have achieved CE certification, reflecting adherence to global quality and safety standards.
Purity consistently prioritizes product quality and customer needs, while seeking global partners and distributors. For businesses interested in exploring PSM end suction centrifugal pumps, contacting Purity’s technical team is recommended to select the optimal solution for your specific application.
Picture | Purity End Suction Pump PSM
Conclusion
In summary, an end suction centrifugal pump is a versatile, reliable, and cost-effective solution for a wide range of fluid transfer applications. Whether you are looking for a horizontal end suction centrifugal pump, a single stage end suction centrifugal pump, or general end suction centrifugal water pumps, these pumps provide dependable performance, ease of maintenance, and adaptability across residential, commercial, and industrial sectors.
