In modern fluid handling systems, efficiency and reliability are essential. One common challenge with standard centrifugal pumps is the need for priming — filling the pump casing with liquid before operation. Without this, the pump cannot create the suction required to lift fluid from below its suction level. This is where the self priming centrifugal pump provides a superior solution.
A self-priming centrifugal pump is specifically designed to evacuate air from the suction line and pump casing, creating a vacuum that draws fluid into the pump automatically. This eliminates the need for external priming equipment, making it highly versatile and convenient across industries.
How Does a Self-Priming Centrifugal Pump Work?
The principle behind centrifugal pump self priming involves a clever hydraulic design:
1.Initial Fill – Before first use, the pump casing must be filled with liquid. This liquid is retained inside the casing even after shutdown, thanks to check valves or flap valves.
2.Air Removal – During startup, the retained liquid circulates inside the pump, mixing with air in the suction line.
3.Vacuum Formation – This circulation forces air out through the discharge, gradually creating a vacuum inside the suction pipe.
4.Fluid Intake – Once a sufficient vacuum is formed, the pump begins drawing fluid from the source.
5.Continuous Operation – After priming, the pump functions like a standard centrifugal pump, ensuring uninterrupted fluid delivery.
Special structures such as recirculation systems, impeller modifications, and sealed chambers are crucial in maintaining the self-priming capability.

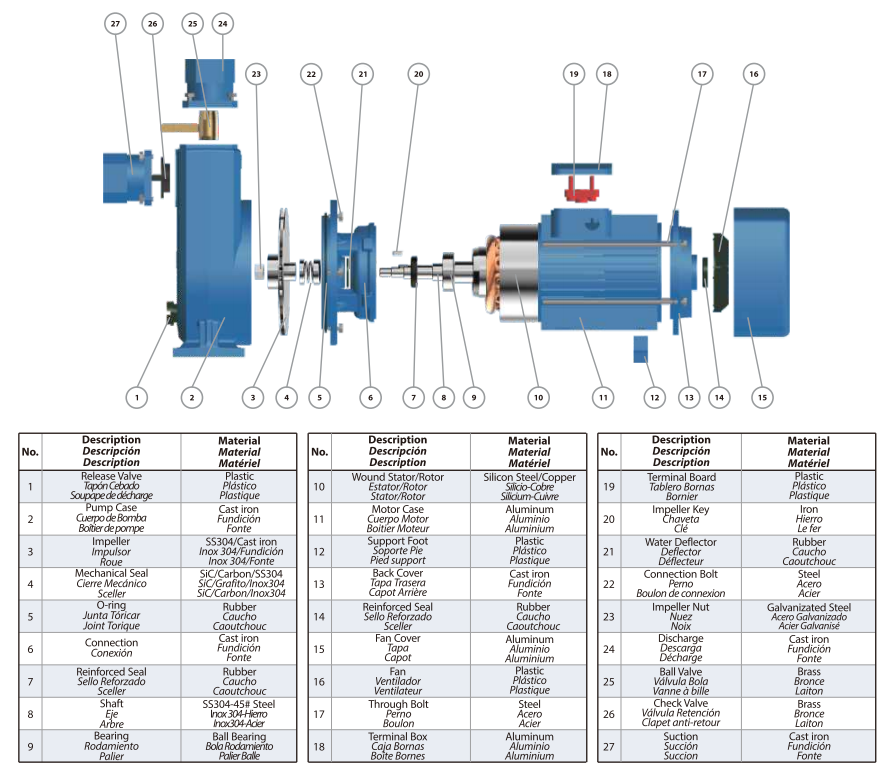

Figure | Purity Self-priming Centrifugal Pump PXZ Component
Advantages of Self-Priming Centrifugal Pumps
1.Handles Air and Gas-Liquid Mixtures – Unlike traditional centrifugal pumps, self-priming models can continue operation even with entrained air.
2.No External Priming Required – They eliminate the need for vacuum pumps or foot valves.
3.Flexible Installation – Pumps can be placed above the liquid level, making them suitable for fluctuating water levels.
4.Simple Maintenance – Their design allows easy access for inspection and servicing.
5.Versatile Fluid Handling – They can process liquids containing solids, corrosive fluids, or sewage-like mixtures.
Limitations to Consider
Despite their benefits, self-priming centrifugal pumps have some limitations:
1.Slightly Lower Efficiency – Compared to conventional centrifugal pumps, their hydraulic efficiency may be lower.
2.Re-Priming After Long Shutdowns – If liquid in the casing evaporates or drains, manual refilling is required.
3.Risk of Clogging – Handling fluids with large solids may require pre-filtration.
Applications of Self-Priming Centrifugal Pumps
The adaptability of self-priming centrifugal pumps makes them suitable for a wide range of industries:
1.Municipal & Environmental – Wastewater treatment, sewage, and stormwater management.
2.Construction & Drainage – Dewatering of basements, tunnels, and foundation pits.
3.Agriculture & Irrigation – Farm water supply, chemical spraying, and fertilizer distribution.
4.Marine & Shipbuilding – Bilge pumping and flood prevention.
5.Emergency & Flood Control – Rapid water evacuation in disaster response.
6.Firefighting – Quick water intake for emergency fire suppression.
Key Factors in Selecting a Self-Priming Centrifugal Pump
When choosing from self priming centrifugal pump suppliers, engineers and operators must consider:
1.Maximum solid size to avoid clogging
2.Fluid viscosity and pump speed compatibility
3.Suction lift (horizontal and vertical distance plus pipe losses)
4.Liquid level fluctuations and risk of cavitation
5.Required self-priming time and overheating risks
6.Drive type (electric motor, diesel engine, or hydraulic)
7.Installation method (fixed, trailer-mounted, or floating)
8.Control logic for starting and stopping
Example: Purity PXZ Self-Priming Pump
The Purity PXZ self-priming centrifugal pump illustrates the advantages of modern pump engineering:
1.304 stainless steel welded shaft – Provides rust resistance and extends service life.
2.Energy-efficient motor – Equipped with a national-standard certified motor, pure copper windings, low temperature rise, and high efficiency.
3.User-friendly connections – Threaded inlet and outlet make installation fast and convenient.
With over 15 years of expertise in industrial energy-saving pumps, Purity has exported to more than 120 countries worldwide. Backed by certifications and a 6,000 m² factory, the company continues to lead with quality and innovation.
Figure | Purity Self-priming Centrifugal Pump PXZ
How Much Does a Self-Priming Centrifugal Pump Cost?
The self priming centrifugal pump price varies depending on factors such as pump material, flow rate, head, sealing type, and application. Stainless steel and corrosion-resistant models typically cost more but offer greater durability and lower lifetime maintenance. When comparing prices, it is vital to balance upfront costs with long-term performance and reliability.
Conclusion
Self-priming technology solves one of the biggest limitations of conventional centrifugal pumps: the need for external priming. By automatically evacuating air and maintaining liquid inside the casing, the self priming centrifugal pump ensures reliability in challenging conditions.
Whether in wastewater treatment, agriculture, marine applications, or firefighting, self-priming centrifugal pumps have become essential to modern fluid handling systems. For users seeking dependable solutions, working with trusted self priming centrifugal pump suppliers is the key — ensuring not only the right product, but also long-term support and competitive self priming centrifugal pump price.Purity hopes to be your first choice!
Post time: Aug-29-2025
