PDJ Skid High Pressure Diesel Fire Pump Set

Short Description:

Purity PDJ diesel fire pump set integrates a variety of operation modes, water pump unit timing, and automatic warning shutdown functions, making it an ideal choice in fire fighting fields.

Send email to us

Product Detail

Product Tags

Product Introduction

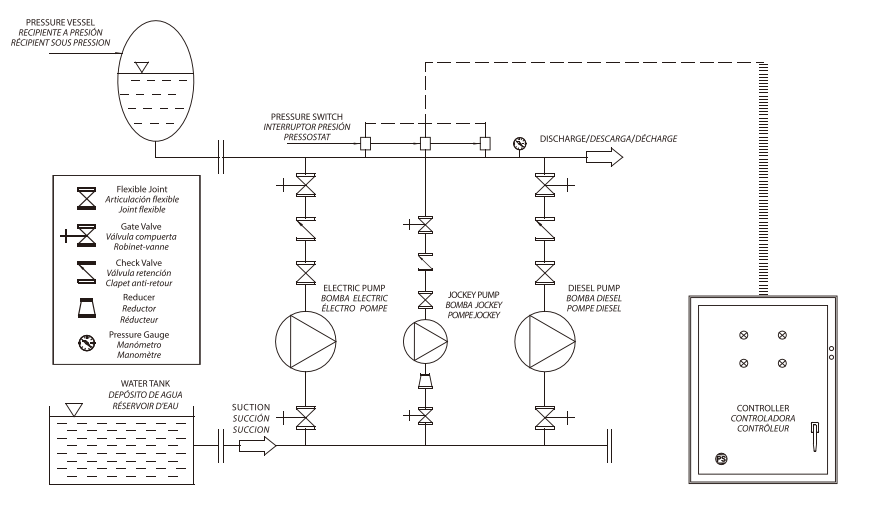

Purity PDJ diesel fire pump set integrates a centrifugal pump driven by a diesel engine, a vertical jockey pump for pressure maintenance, a control cabinet, and a piping system. With a compact structure and high-pressure water delivery, the diesel fire fighting pump set ensures reliable and efficient firefighting capabilities, especially in emergency situations.

One of the key advantages of PDJ diesel fire fighting pump set lies in its flexible operation modes. It supports manual control, automatic adjustment, and remote control, allowing users to start or stop the fire pump diesel easily under different circumstances. Whether operated onsite or through a control center, the diesel powered fire pump can respond quickly to fire alarms or other triggering events, ensuring timely water supply to the fire suppression system.

Purity PDJ diesel pump fire fighting is also equipped with programmable timing functions for better performance and engine protection. Users can set parameters such as delay time, preheating time, start-cut time, high-speed operation time, and cooling time. These settings help maintain the optimal operating condition of the diesel engine, reduce wear, and extend the service life of the equipment.

PDJ diesel fire pump is designed with a comprehensive fault alarm and shutdown function to prevent damage and enhance reliability. It will automatically trigger alarms and shut down the engine when issues such as missing speed signal, overspeed, underspeed, low oil pressure, high oil pressure, high oil temperature, start failure, stop failure, or open/short circuits in oil or water temperature sensors are detected. This advanced safety mechanism significantly reduces the risk of malfunction during critical operations and ensures consistent readiness of the fire fighting system.

In conclusion, Purity PDJ diesel fire pump set is a high-performance, intelligent, and secure solution for fire protection needs. Its compact footprint, high-pressure output, flexible control options, customizable timing functions, and robust safety features make it a reliable choice for various emergency scenarios. If you are interested in diesel fire pump set,welcome to inquiry!
