Single Stage Horizontal Volute Split Casing Fire Pump
Product Introduction
A key feature of Purity PSCM centrifugal fire pump horizontal split case is its double suction radial impeller, available in AISI 304 stainless steel or HT250 cast iron. These material options enhance corrosion resistance and structural strength, ensuring stable performance even in harsh environments. The double-suction design minimizes axial force and provides smoother hydraulic operation, greatly improving efficiency and reducing vibration during long-term operation.
Purity PSCM horizontal split case fire pumps body is manufactured from HT250 cast iron and coated with a protective anti-corrosion layer. This surface treatment significantly extends the service life of the fire pump split case, allowing it to withstand demanding working conditions while maintaining optimal performance. The sealing area is equipped with a shaft protection sleeve, offering excellent sealing reliability and preventing wear on the shaft, which further enhances durability and reduces maintenance requirements.
Another major advantage of Purity PSCM fire pump horizontal split case is its axially split volute casing. This structure allows the upper casing to be lifted directly from the lower section, giving maintenance personnel easy access to internal components such as the impeller, shaft, bearings, and sealing system—without removing the motor or disconnecting the pipework. This design greatly reduces downtime and simplifies routine inspection and servicing.
With its robust construction, strong hydraulic performance, and user-friendly maintenance features, Purity PSCM fire fighting volute split casing pump provides a reliable solution for modern fire fighting systems. It ensures rapid water delivery, high stability, and long-term operational safety, making it an ideal choice for critical firefighting applications.
Purity specializes in various types of fire pumps and has sold them to more than 130 countries worldwide.Welcome to inquiry Purity Pump!

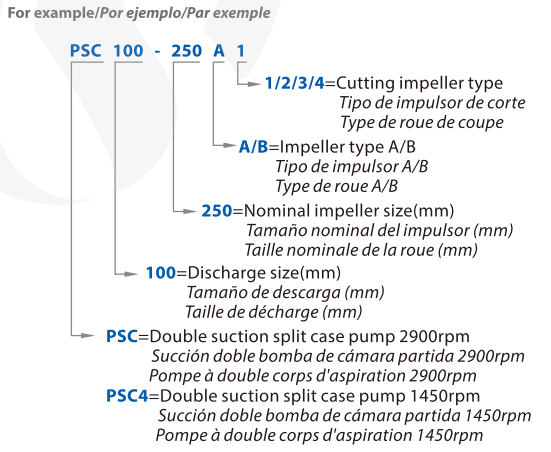

Model Description

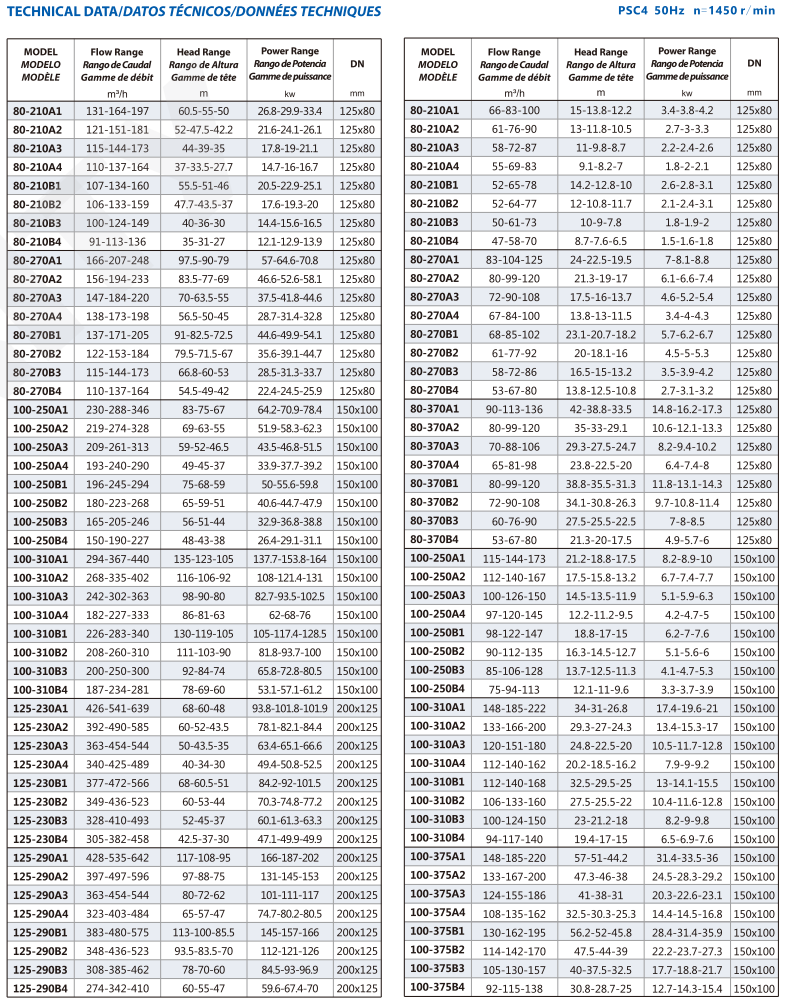

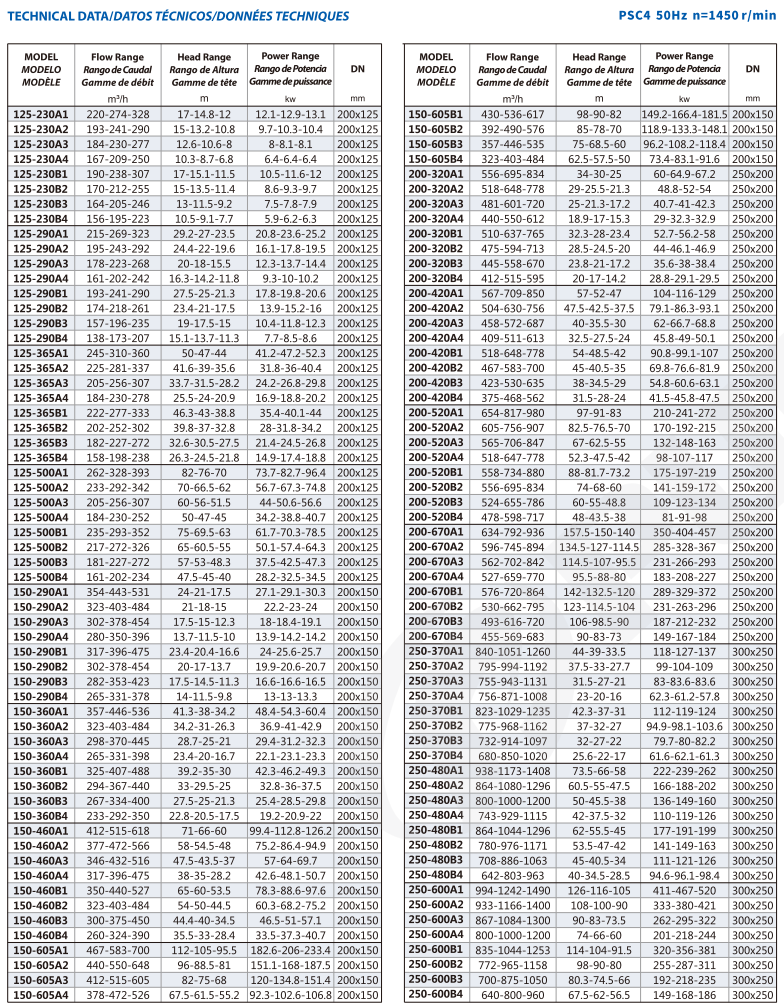

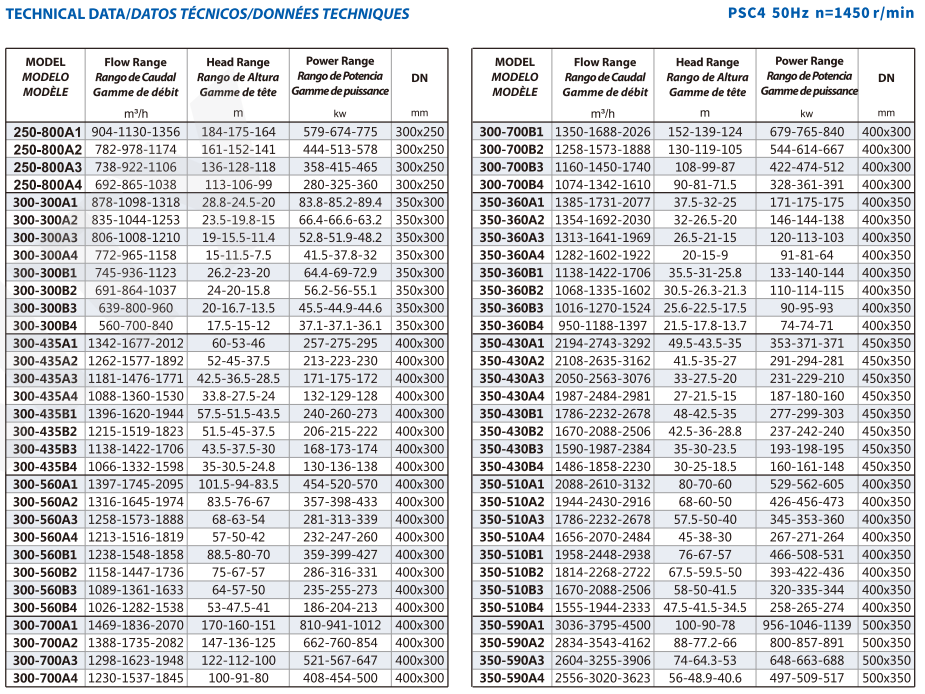

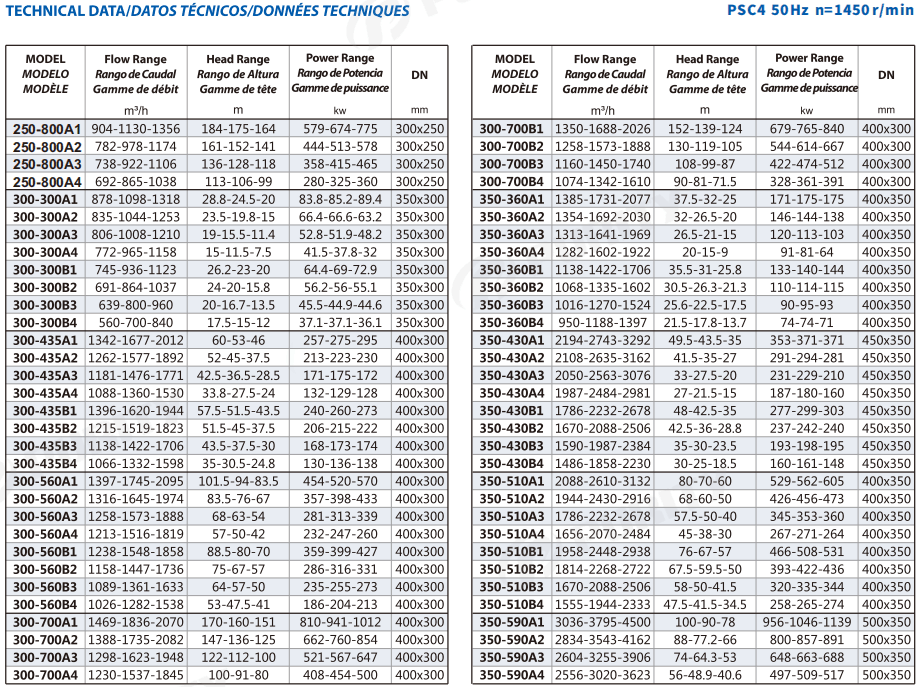

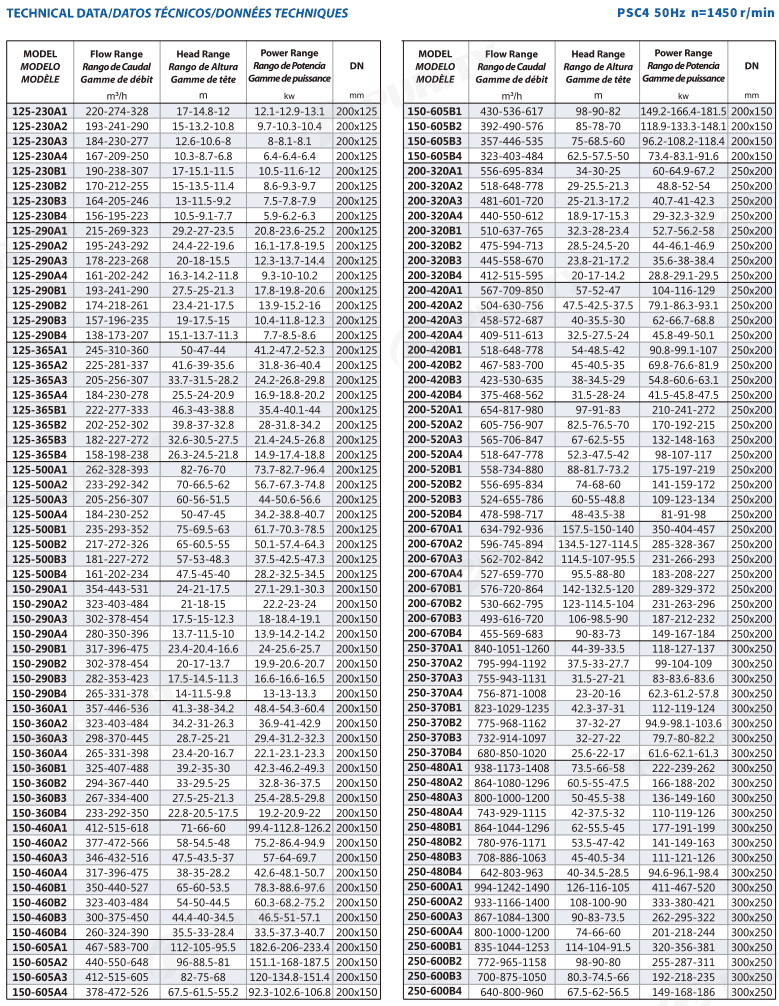

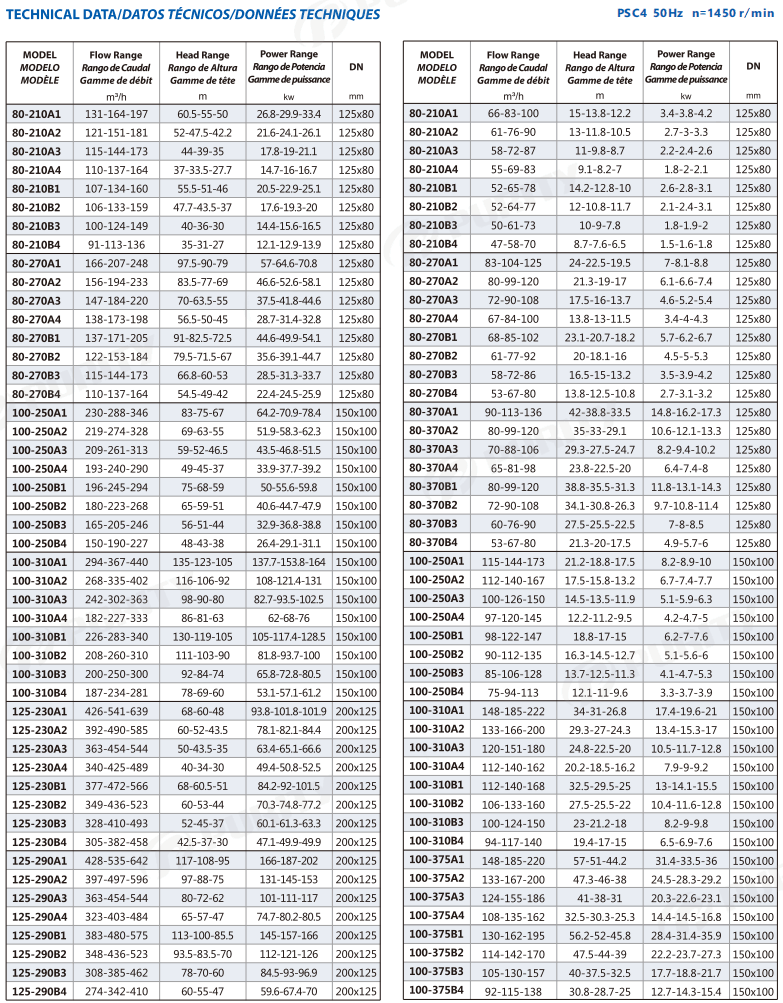

Product Parameters
