Horizontal Stainless Steel Pipeline Centrifugal Pump
Product Introduction
Purity PGWH pipeline pump centrifugal pump head is manufactured from high-grade stainless steel, ensuring excellent corrosion resistance and hygienic performance. This material selection makes the horizontal pipeline centrifugal pump particularly suitable for clean water transfer, domestic water supply, HVAC circulation, and pressure boosting systems where water quality must be strictly maintained. The stainless steel construction effectively prevents rust and contamination, guaranteeing safe and reliable water delivery over long periods of operation.
A key structural advantage of PGWH stainless steel pipeline centrifugal pump is its motor-pump coaxial design. By directly coupling the motor shaft with the pump shaft, the intermediate transmission components are eliminated, resulting in a simplified and compact structure. This design significantly improves shaft alignment accuracy and overall mechanical stability. The precisely engineered impeller features excellent dynamic and static balance, ensuring smooth rotation and stable hydraulic performance. As a result, the Purity PGWH stainless steel industrial centrifugal pumps operate with minimal vibration and low noise levels, even during long-term continuous operation. Reduced vibration also helps to extend the service life of bearings and other rotating components, lowering maintenance costs.
Sealing reliability is another major strength of the Purity PGWH stainless steel pipeline pump centrifugal pump. The shaft seal adopts high performance mechanical seal materials, such as hard alloy and silicon carbide, which offer outstanding wear resistance and thermal stability. Compared with traditional packing seals, this advanced sealing structure effectively eliminates leakage issues while significantly improving sealing durability. It ensures consistent performance under varying pressure and temperature conditions and reduces downtime caused by seal failure.
Purity supply pipeline centrifugal pump to more than 130 countries and regions.We are looking forward to cooperate with you!

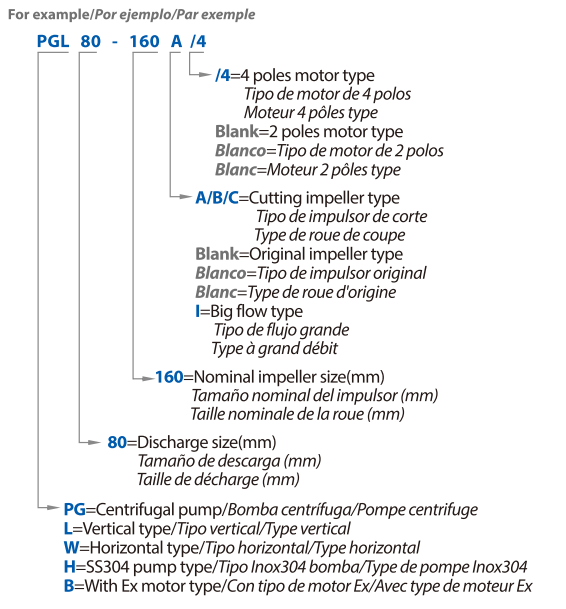

Model Description

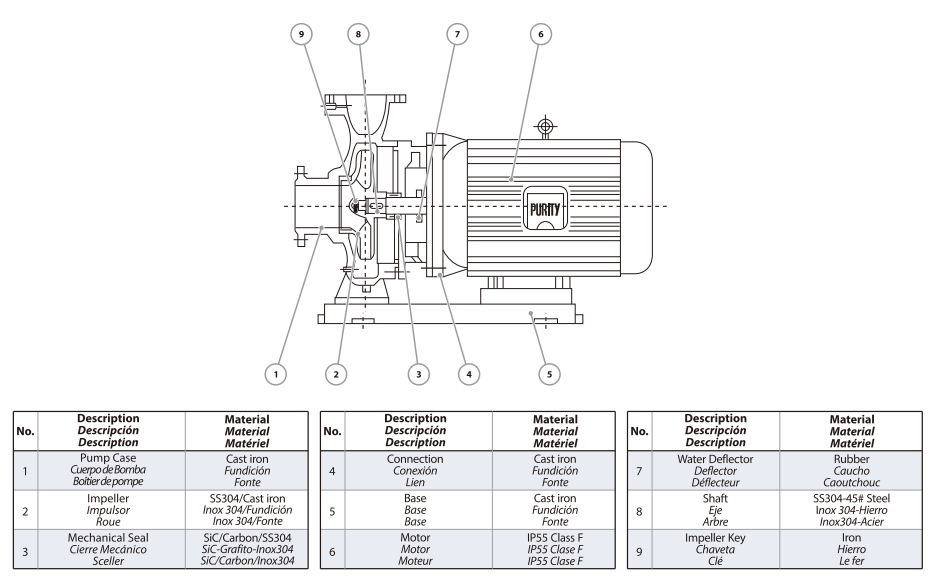

Product Components

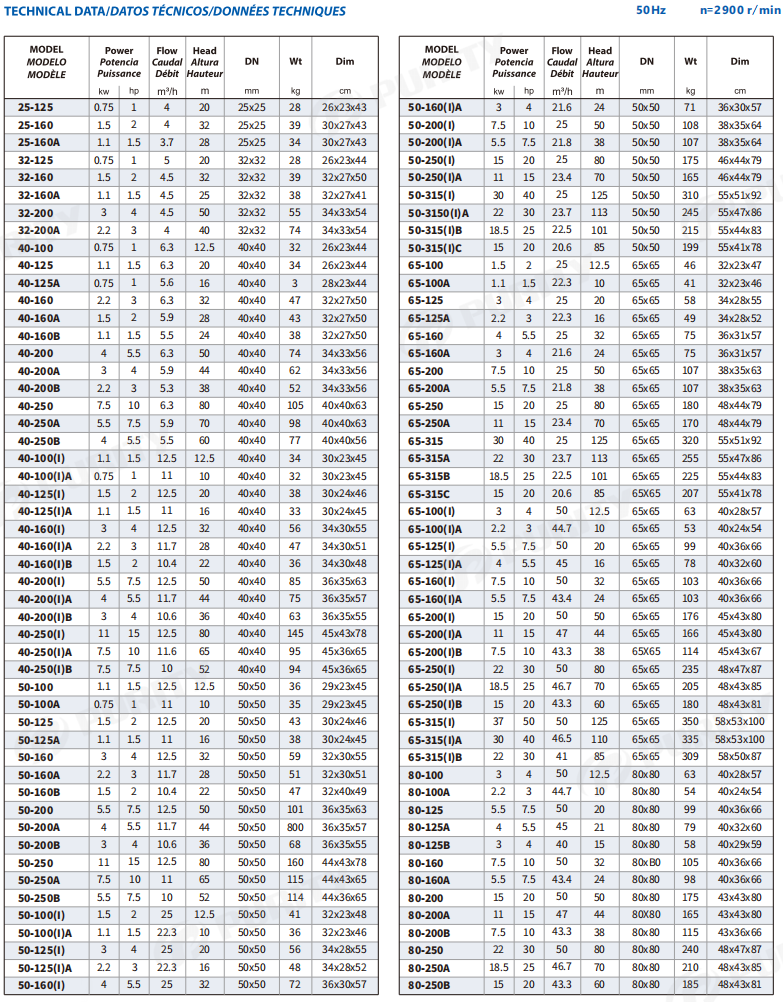

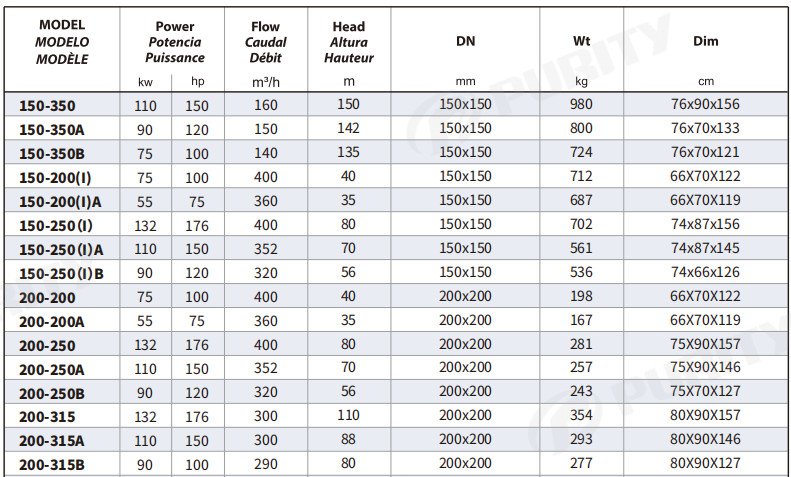

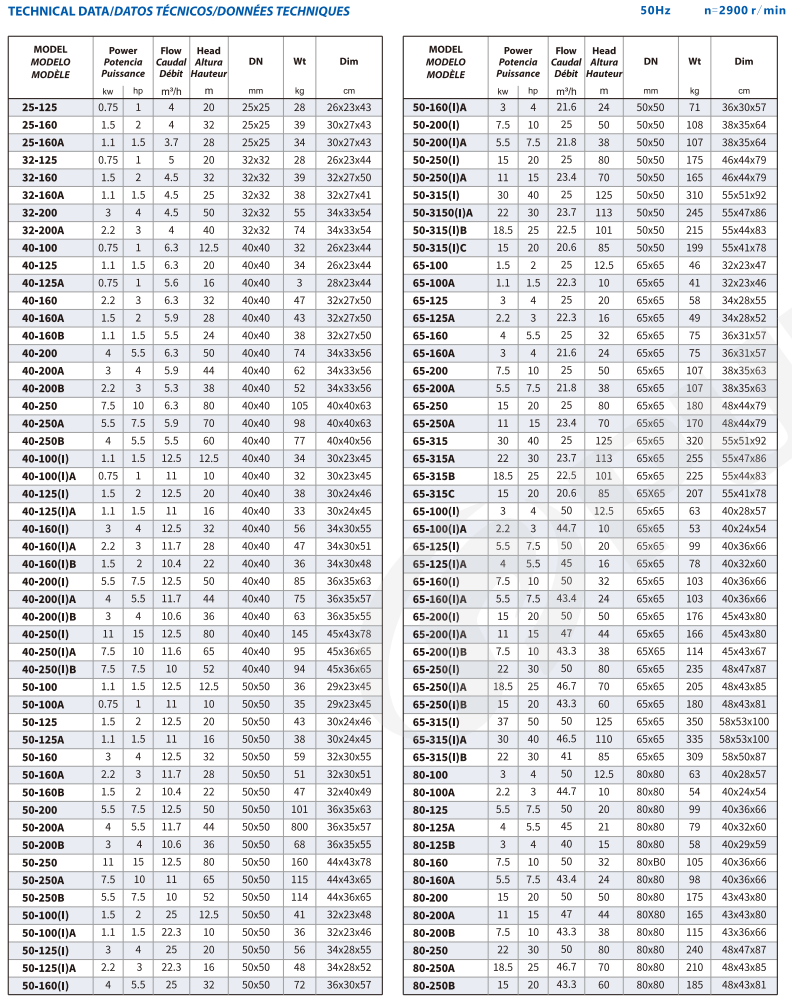

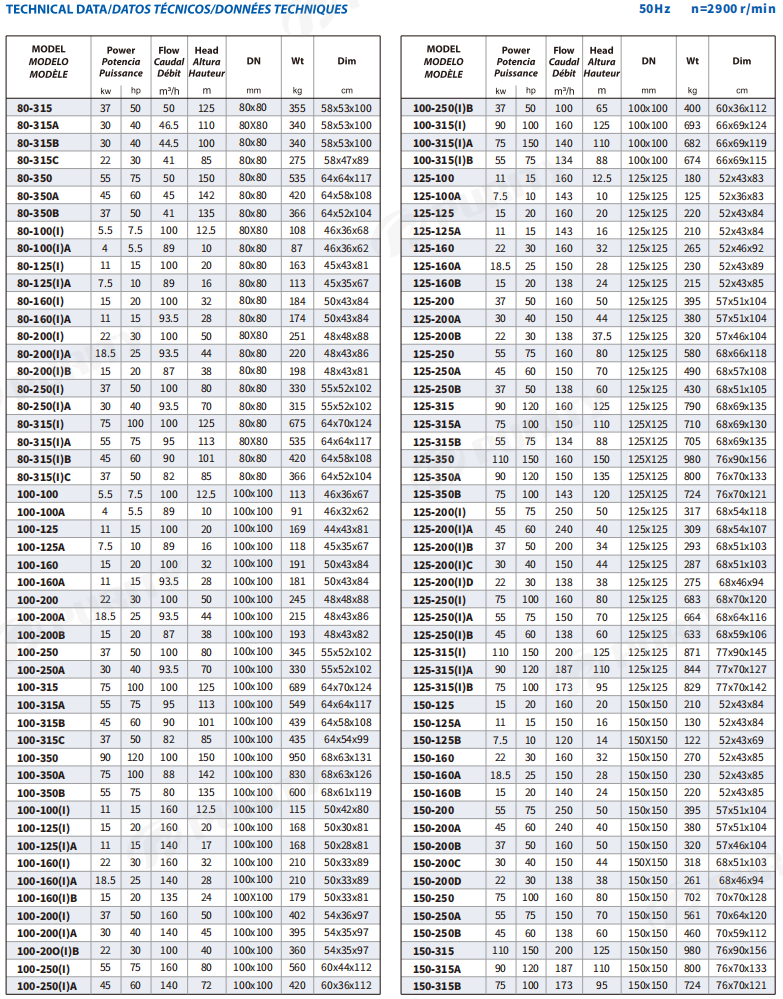

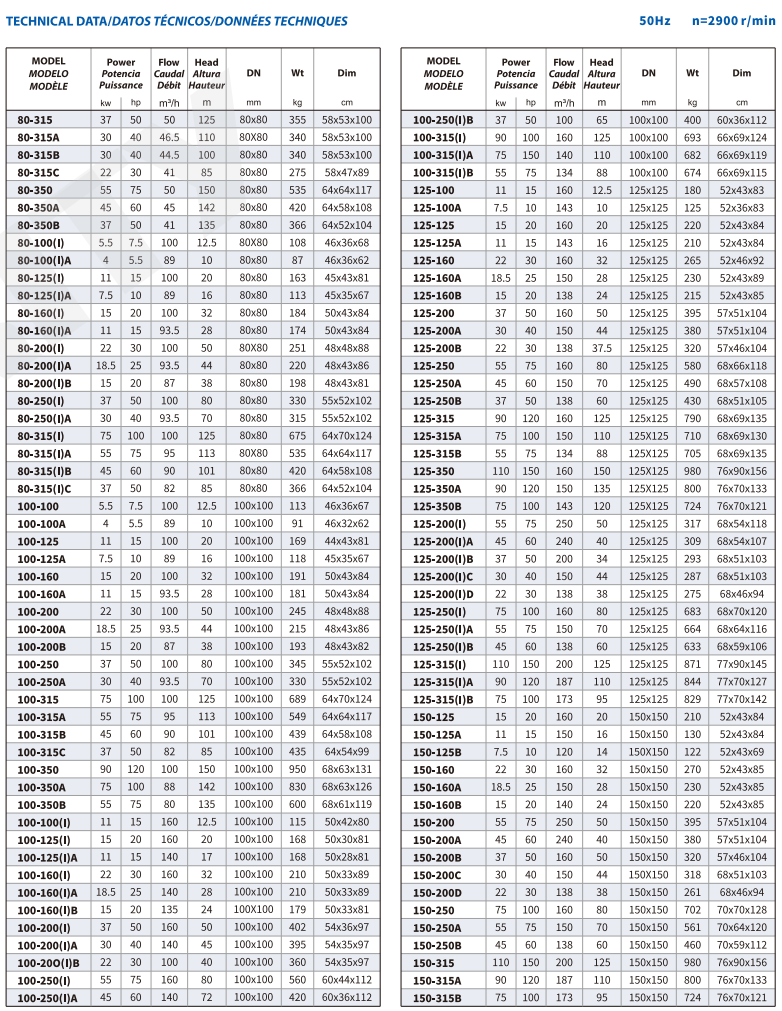

Product Parameters
