PTD Inline Circulation Pump

Short Description:

Introducing our revolutionary PTD type single-stage pipeline circulation pump! Designed with the latest technology and engineered for maximum performance, this pump is a game-changer in the industry.

Product Detail

Product Tags

Product Introduction

One of the standout features of our PTD pump is its robust structure, which is less susceptible to impurities in the pumped liquid compared to similar products. This means that our pump is more reliable and requires less maintenance, saving you time and money in the long run.

Another unique aspect of our PTD pump is its innovative design that allows for easy disassembly. By simply pulling out the top, you can repair the pump without the need to disrupt the entire piping system. This not only reduces downtime but also enhances the overall efficiency of your operations.

We offer a range of models to suit your specific needs. Our PTD125 and PTD150 products provide an extended shaft and a detachable structure, offering even more convenience during repairs. Additionally, our TD200 and above caliber pumps feature an integral detachable mechanical seal, eliminating the need to disassemble the motor when replacing the seal.

In terms of technical specifications, our PTD pumps are single-stage centrifugal pumps with an inline design. They are equipped with a high-temperature seal, making them ideal for use in heating systems. The pumps are easily back pull-out from the motor for coupling design, further simplifying maintenance procedures.

Our PTD pumps are powered by YE3 high-efficiency motors, ensuring optimum performance while maximizing energy savings. These motors are also equipped with IP55 class F protection, providing enhanced durability and safety. The pump case comes with an anti-corrosive coating, guaranteeing a long and reliable service life. Additionally, the shaft is made from stainless steel AISI 304, and the pump features a quality NSK bearing and wear-resistant mechanical seal.

Choose our PTD type single-stage pipeline circulation pump and experience the future of pumping technology. With its advanced features, innovative design, and exceptional performance, this pump will revolutionize your operations and exceed your expectations. Trust in our expertise and let us provide you with a pumping solution that will take your business to new heights. Contact us now to learn more!

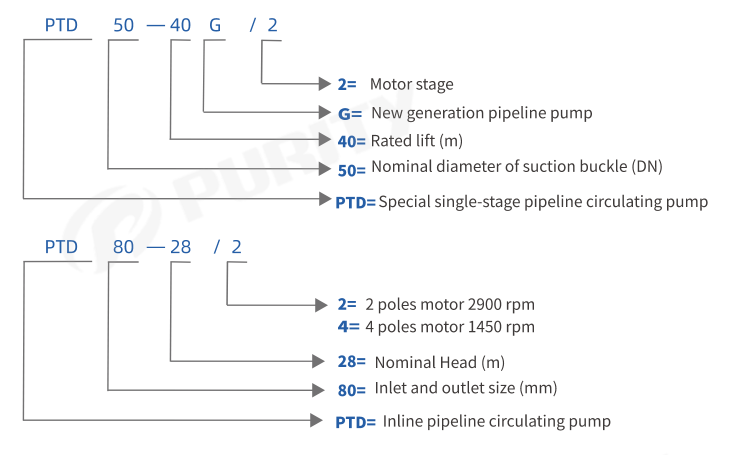

Model Description


Conditions of Use


Structural characteristics


Product components

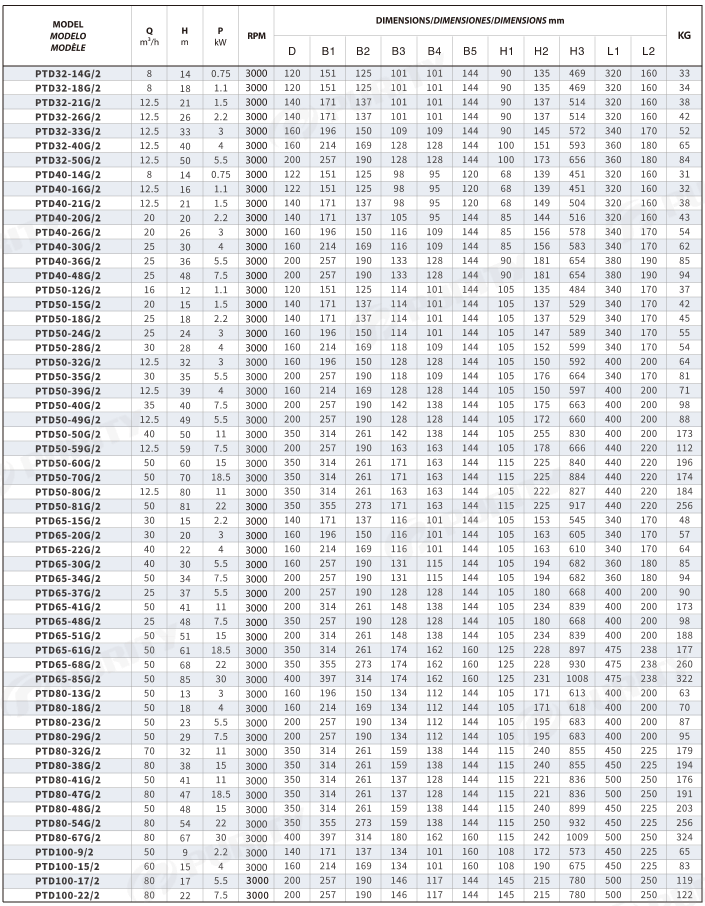

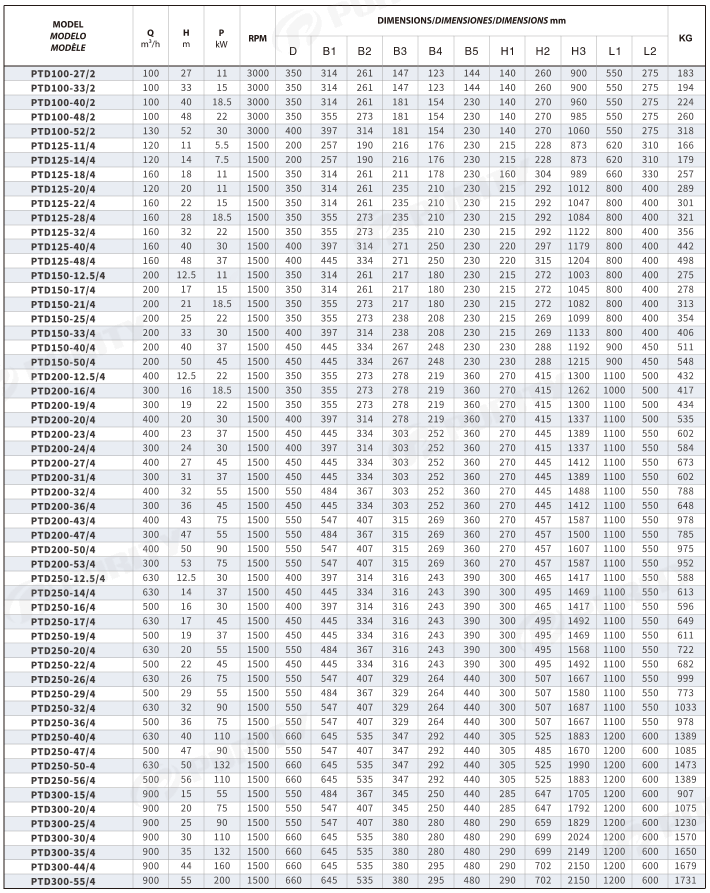

Product parameters
