Fire Fighting System
-
Emergency Diesel Driven Fire Protection Pump Systems
Product Introduction
Purity PDJ fire protection pump systems are composed of a diesel engine driven centrifugal pump, a jockey pump, a controller box, and a piping system. With its ability to run without external electricity, the fire protection pump systems are especially suitable for locations with unstable power supply or in situations where electricity is completely unavailable, ensuring continuous and dependable fire protection.
Safety and protection are at the core of the diesel fire fighting pump set. It is equipped with an intelligent alarm and shutdown mechanism that responds to abnormal operating conditions. In case of issues such as no speed signal, overspeed, underspeed, low oil pressure, high oil pressure, high oil temperature, start-up failure, shutdown failure, or sensor faults (open/short circuits of oil pressure or water temperature sensors), the system automatically triggers an alarm and stops operation. These protective features greatly enhance operational safety, reducing risks and preventing equipment damage during emergencies.
Purity PDJ diesel fire fighting set is also designed with a control cabinet that provides real-time monitoring and clear status display. Operators can easily view critical information such as standby mode, running state, start-up process, fuel supply, delayed start, emergency delay, normal operation, and emergency shutdown signals. This intelligent monitoring capability allows for convenient operation, rapid fault detection, and timely intervention when needed.
By combining autonomous operation, robust pumping capacity, and comprehensive safety functions, diesel fire sprinkler pumps system provides a secure and efficient fire-fighting solution that ensures stable performance even under the most critical conditions.
Purity is a emergency fire pump factory，producing fire fighting centrifugal pump、electric fire pump system and diesel fire pump system.And Purity exports fire pumps to overseas fire pump suppliers.Welcome to inquiry!

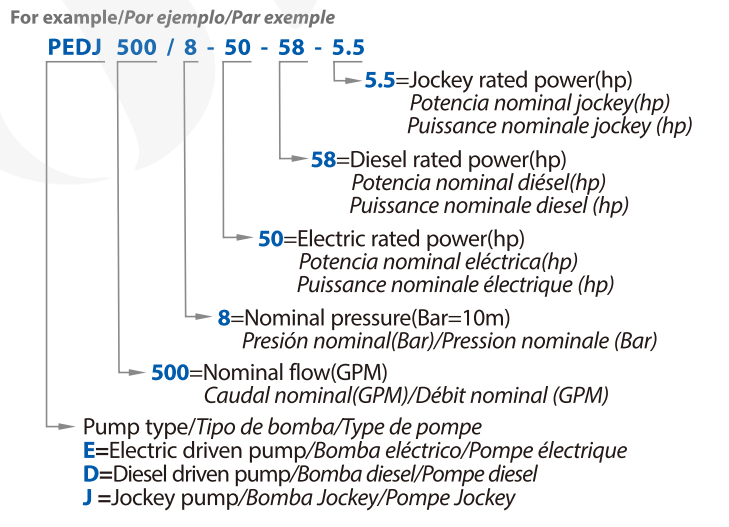

Model Description

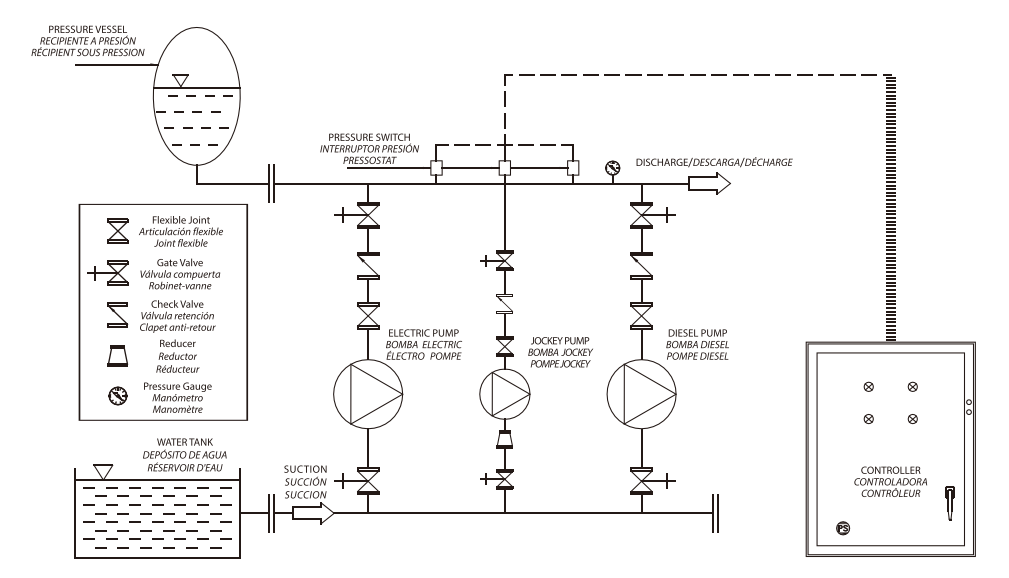

Fire Pump Schematic Diagram

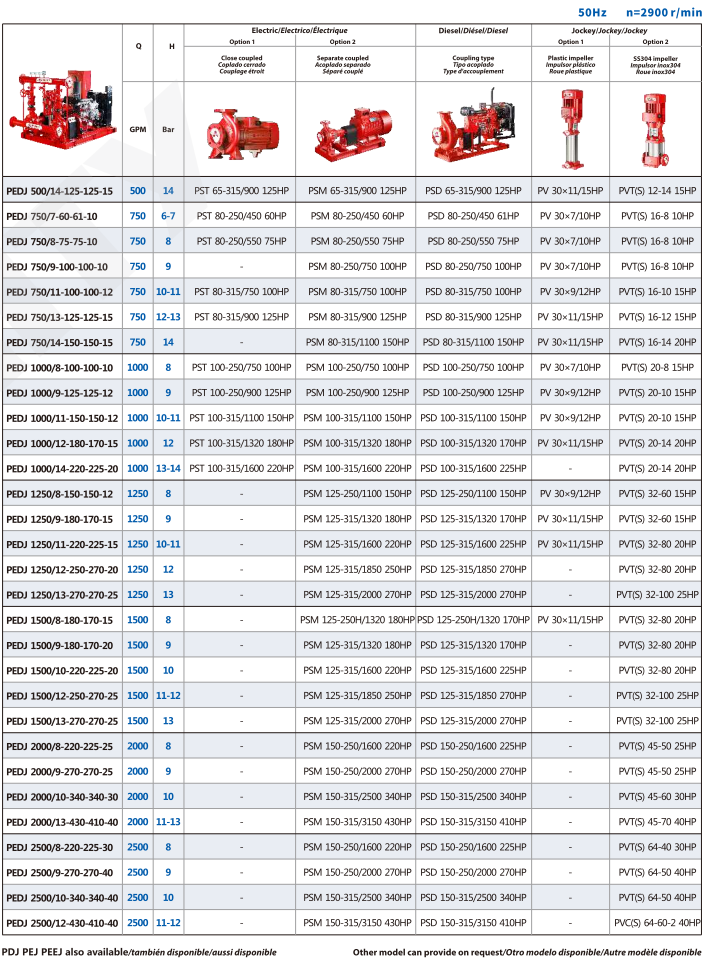

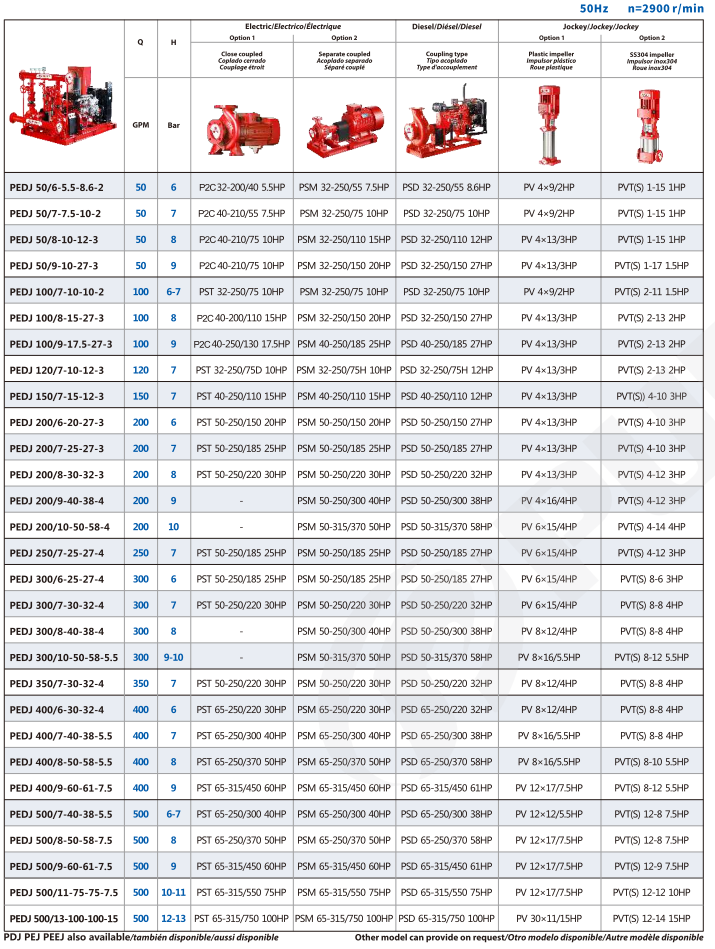

Product Parameters
-
Electric Driven Sprinkler Fire Pump with Jockey Pump
Purity PEJ electric sprinkler fire pump set has a compact structure, good water supply performance, and is equipped with an early warning device to ensure efficient water supply in high-rise buildings.
-
Emergency Diesel Engine Fire Fighting Pump
Purity PSD diesel engine fire fighting pump has an emergency power supply and an early warning protection system to ensure safe and efficient water supply in power outage situations.
-
Emergency Fire Water Pump System with Controller
Purity PEDJ emergency fire water pump system features dual power supply control and safety warnings, ensuring safe and efficient water supply in emergency situations.
-
Electric Motor Driven Vertical Turbine Fire Pump
Purity XBD vertical turbine fire pump offers high head, large flow, and customizable voltage options, making it an ideal choice for efficient water delivery in fire fighting operations.
-
SS304 Multi-stage Centrifugal Jockey Fire Pump
Purity PVT jockey fire pump has motor phase loss protection and excellent heat dissipation performance. It is an important part of the fire fighting system to maintain constant pressure.
-
Electric Diesel Engine Driven Fire Protection Pumps
Purity PEDJ sprinkle system fire pump supports electric and diesel engine driven, and is equipped with safety devices, making it the first choice in emergency power outage situations.
-
High Pressure Vertical Inline Fire Jockey Pump
Purity PVT vertical fire pump motor is equipped with overload and phase loss protection and excellent heat dissipation to ensure long-term, safe and efficient operation.
-
Single Stage Monoblock Electric Fire Pump
Purity PST electric fire pump has strong anti-cavitation performance and high concentricity, ensuring long-term operation stability and reducing maintenance costs.
-
Electrical Fire Sprinkler Pump System with Jockey Pump
Purity PEEJ fire sprinkler pump system has convenient and flexible control and operation time setting functions to meet the operator’s needs for efficient work.
-
PEJ Horizontal Centrifugal Electric Fire Pump Systems
Purity PEJ electric fire pump systems deliver reliable water supply and real-time pressure monitoring, ensuring safe and efficient fire protection performance.
-
Horizontal Electric End Suction Centrifugal Fire Pump
Purity PSM end suction fire pump uses high-quality key components and anti-cavitation pump heads to meet the needs of high-standard fire fighting applications.
