PGL series Single Suction Centrifugal Pump

working conditions

1.The pump system maximum pressure is 1.6MPa.that is to say the pump suction pressure + pump head <1.6MPa.(Please specify the system working pressure when) ordering, If pump system working pressure s greater than 1.6Ma,should be separately put forward when ordering, therefore we will use of steel materials to manufacture the over-current and connected parts of the pump.)
2.Medium:insoluble solids volume contents of no more than the volume per unit’s 0.1%. particle size less than 0.2mm.(f the medium contents of small particles, the wear-resistant mechanical seals is used.So please note it when ordering.)
3.The ambient temerature does not exceed 40′C, relative humidity is no more than 95%,altitude does not exceed 1000m.
4.PGLPGW Cod/Hot water centrifugal pumps is for conveying clean water or other liquids which physical properties are similar to water. Used in: energy. metallurgy, chemicals. textiles,paper.and hotels restaurants boiler and city heating system circulating pump.Medium temperature T≤100C.
5.PGLH/PGWH stainless steel centrifugal chemical pump is for conveying corrosive liquids that without solid particles.Medium temperature
-20C–~100C°
6.PGLB/PGWB explosion-proof centrifugal oil pump is for conveying petroleum products like gasoline,kerosene,diesel.Medium temperature
-20C–~100C°

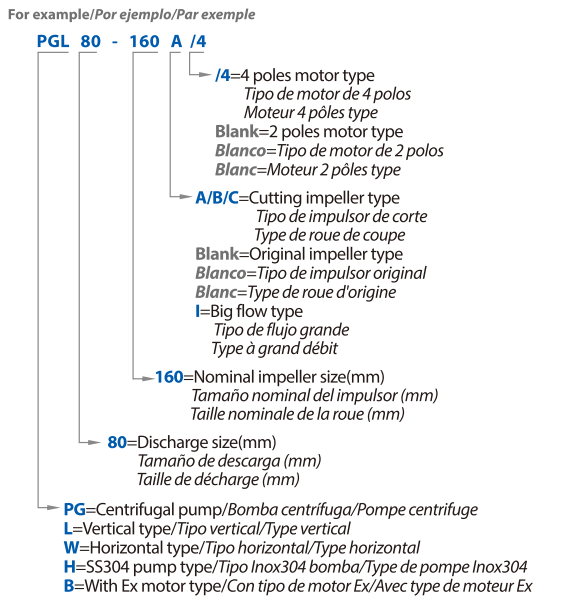

Model Description

STRUCTURE DESCRIPTION

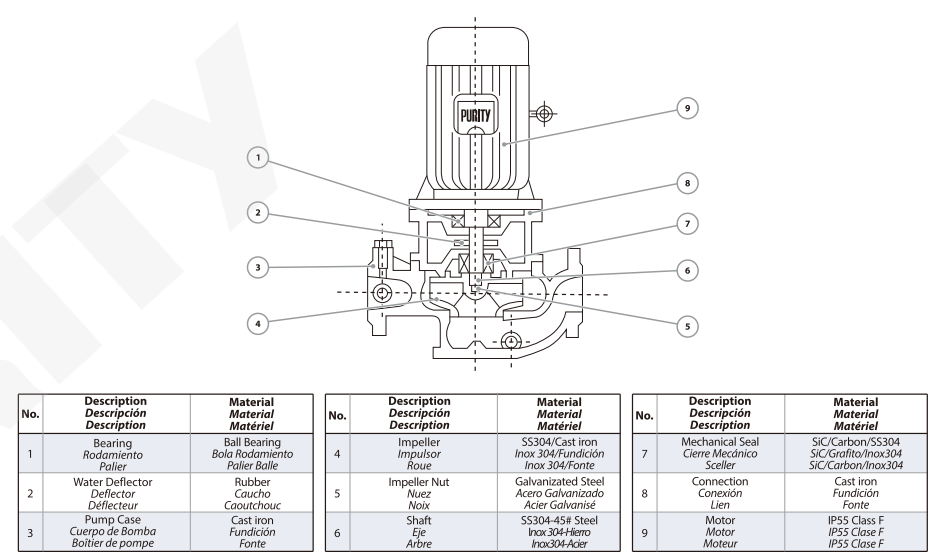

Product components

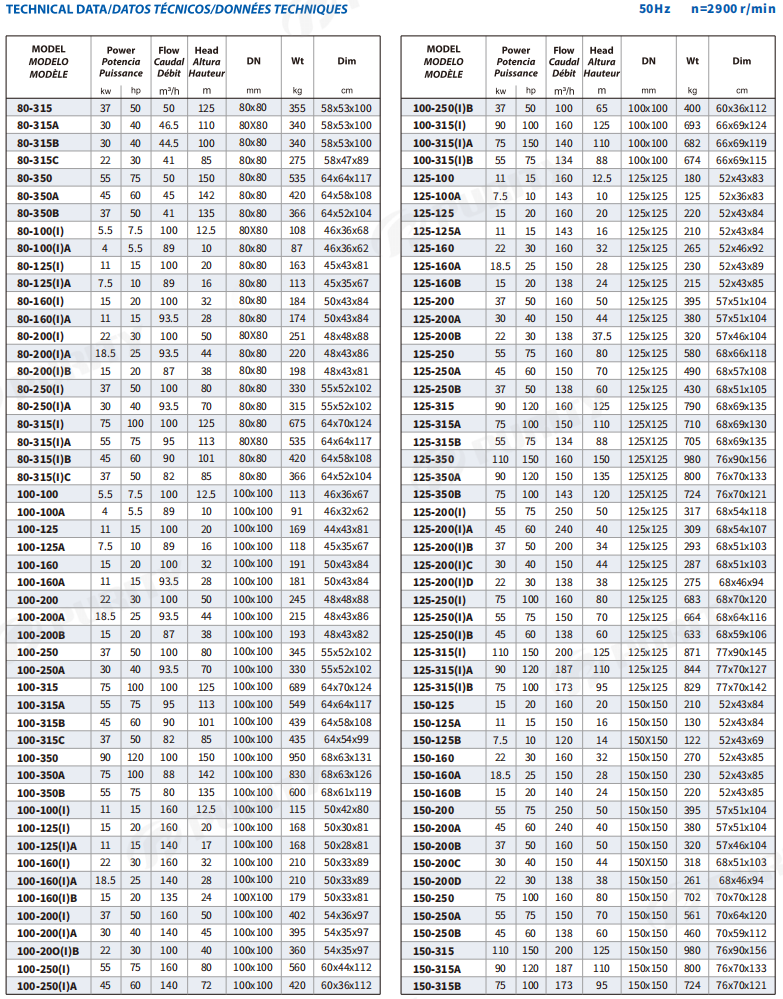

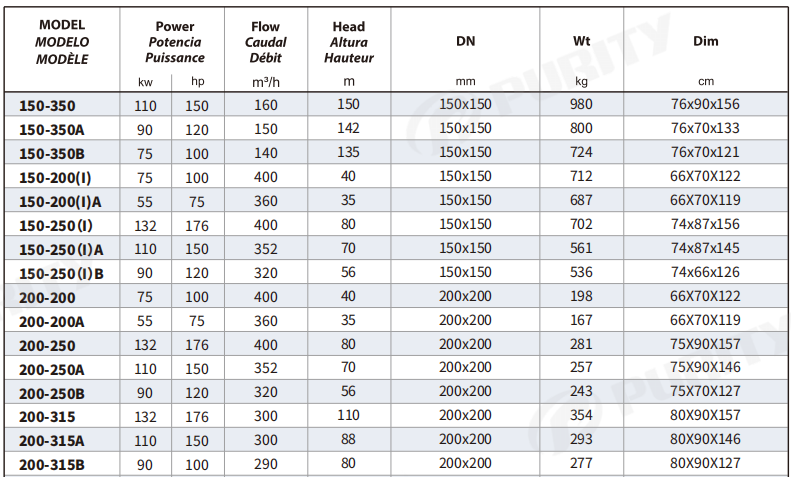

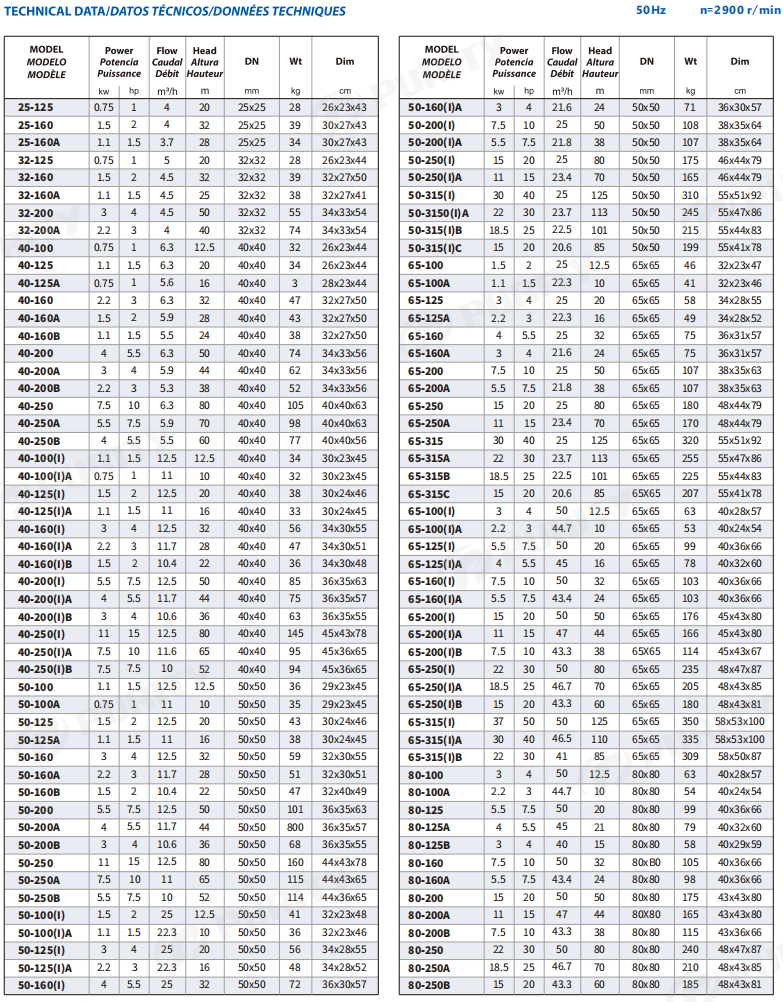

Product parameters
