Single Suction Horizontal Pipeline Centrifugal Pump
Product Introduction
Purity PLT pipeline centrifugal pump adopts a single stage, single suction design with a direct-coupled structure, allowing the electric motor to directly drive the centrifugal water pump without requiring additional support structures. This compact and integrated design not only reduces installation space but also enhances operational stability and simplifies maintenance. The motor and pump are mounted on a solid base, ensuring smooth operation with lower vibration and noise during long-term continuous use.
Purity PLT hot sale pipeline centrifugal pump body and impeller are designed using advanced hydraulic models to achieve excellent flow performance and high operating efficiency. The wetted components feature a multi-channel and variable-flow passage structure, which effectively improves water suction capability while reducing hydraulic losses. This optimized hydraulic design significantly enhances anti-cavitation performance, ensuring stable operation even under demanding working conditions. As a result, Purity PLT hot sale pipeline pump centrifugal pump delivers reliable water transportation with improved energy efficiency and reduced operating costs.
To meet the requirements of harsh outdoor and industrial environments, Purity PLT pipeline centrifugal pump motor protection grade reaches IP66, providing outstanding resistance against water, rain, dust, and external contaminants. The motor has passed authoritative protection and sealing tests, ensuring reliable operation under multi-angle and multi-directional exposure to dust and water.
Leveraging its high-standard, high-quality centrifugal pumps, Purity serves customers in over 130 countries and regions worldwide, dedicated to providing effective water supply solutions. If you are looking for industrial centrifugal pumps, welcome to inquiry Purity Pump!

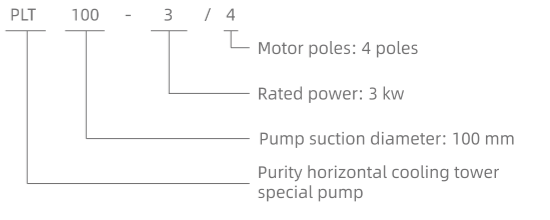

Model Description

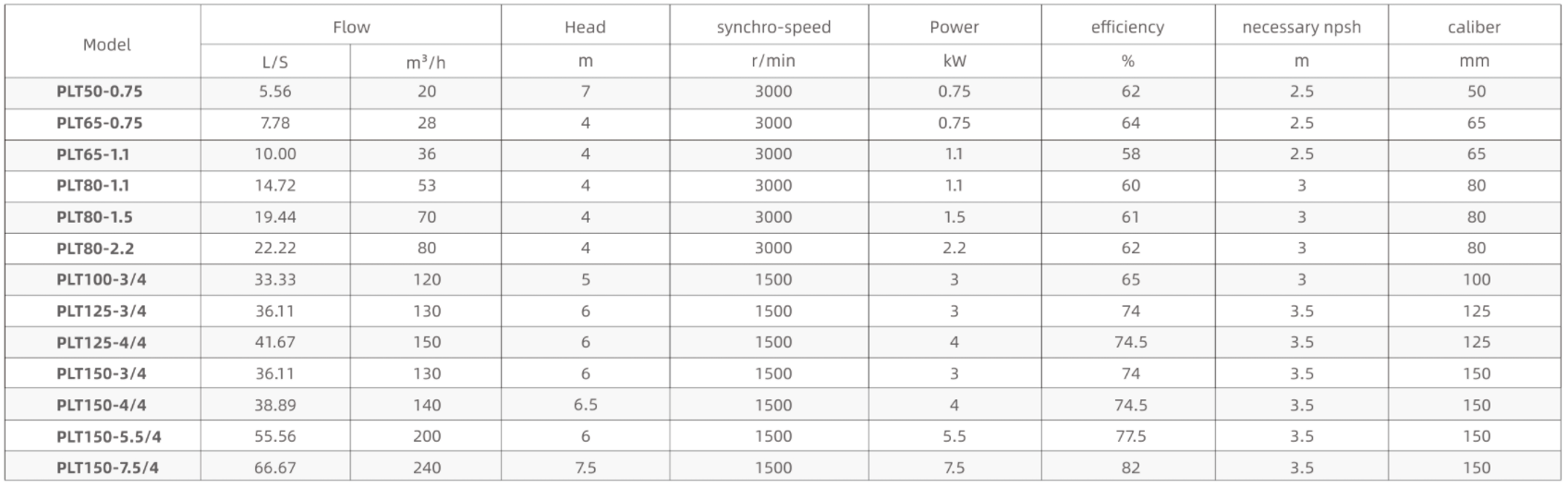

Product Parameters
