A high-temperature warning means your water pump may be sending out a distress signal. Industry data shows that more than 70% of motor burnout failures are caused by abnormal overheating that was ignored in the early stage. Understanding these hidden causes of overheating can help prevent serious failures and keep your pumping system running reliably.

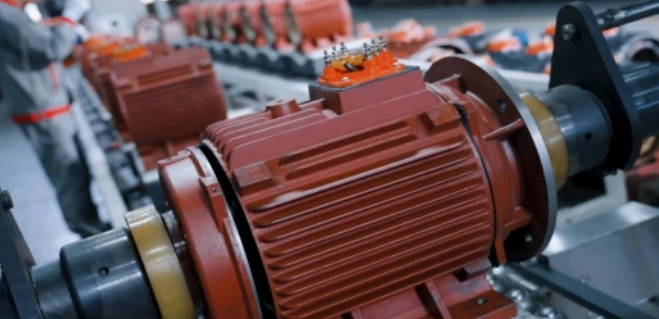

Picture|Electric Motor
1. Overloaded Operation
Every water pump has a designed operating range. Once the actual workload exceeds this limit, the motor needs to generate more power to drive the pump. As the current increases, heat builds up faster inside the motor windings.
Long term overload operation can accelerate insulation aging and eventually cause motor winding burnout.
Quick inspection:Check the pump nameplate and confirm whether the actual flow rate exceeds the rated capacity. Adjust the operating conditions back to the recommended range, or slightly close the outlet valve to reduce the load on the electric motor.
2. Poor Heat Dissipation System
The cooling system of a water pump motor works like an “air conditioner” for the electric motor. The cooling fan and heat dissipation fins are responsible for removing excess heat. However, dust, oil contamination, and crystallized materials in industrial environments can easily block the ventilation channels.
If the cooling fan is stuck by foreign objects and stops rotating, the entire cooling system may fail, causing rapid temperature rise.
Quick inspection:Remove the motor fan cover and check whether the cooling fins and ventilation passages are covered with thick dust, oil, or other contaminants.

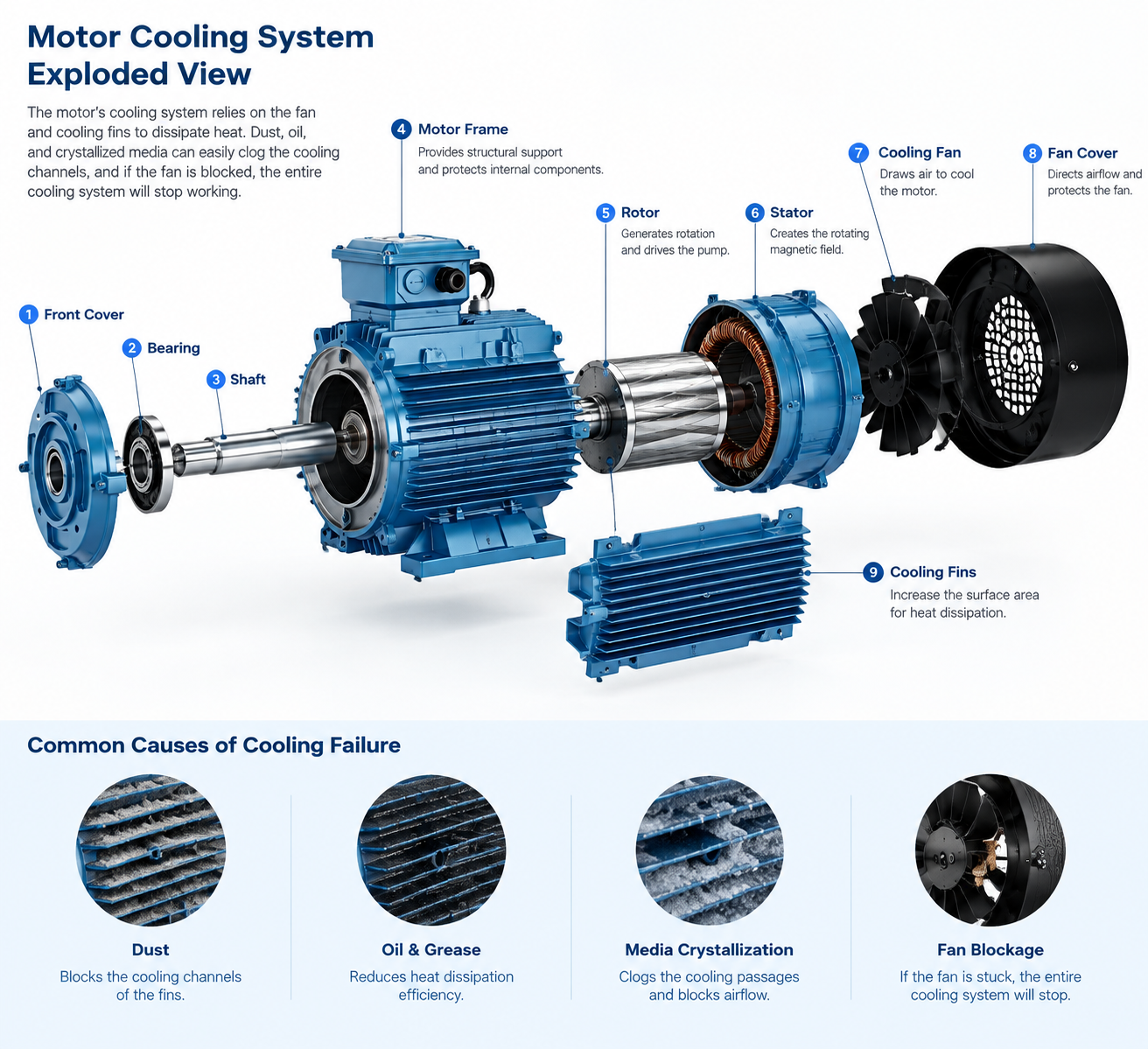

Picture|Exploded View Of An Electric Motor
3. Voltage Problems
When the input voltage is 20% lower than the rated voltage, the electric motor will increase current consumption to maintain output power, resulting in overheating.
For three phase pumps, it is also necessary to check whether the three phase voltage is balanced. Phase loss operation can quickly lead to severe overheating and electric motor burnout.
Quick inspection:Use a multimeter to measure the input voltage. For three-phase motors, check the voltage difference between each phase and eliminate the risk of phase imbalance or phase loss.
4. Mechanical Failures
The bearing is the key supporting component of a water pump’s rotating system. When the grease loses effectiveness or the bearing becomes worn and stuck, friction resistance increases significantly.
The electric motor then needs to overcome additional mechanical resistance, causing extra heat generation. In severe cases, it may even lead to rotor-stator contact and damage internal components.
Quick inspection:Check the temperature near the electric motor bearing. If this area is noticeably hotter than the motor body and accompanied by periodic abnormal noise, the bearing may require lubrication or replacement.
By identifying and correcting these issues in advance, operators can effectively reduce the risk of electric motor overheating, prevent unexpected shutdowns, and ensure stable pump performance.
For water pump systems, choosing a reliable and efficient electric motor is essential.

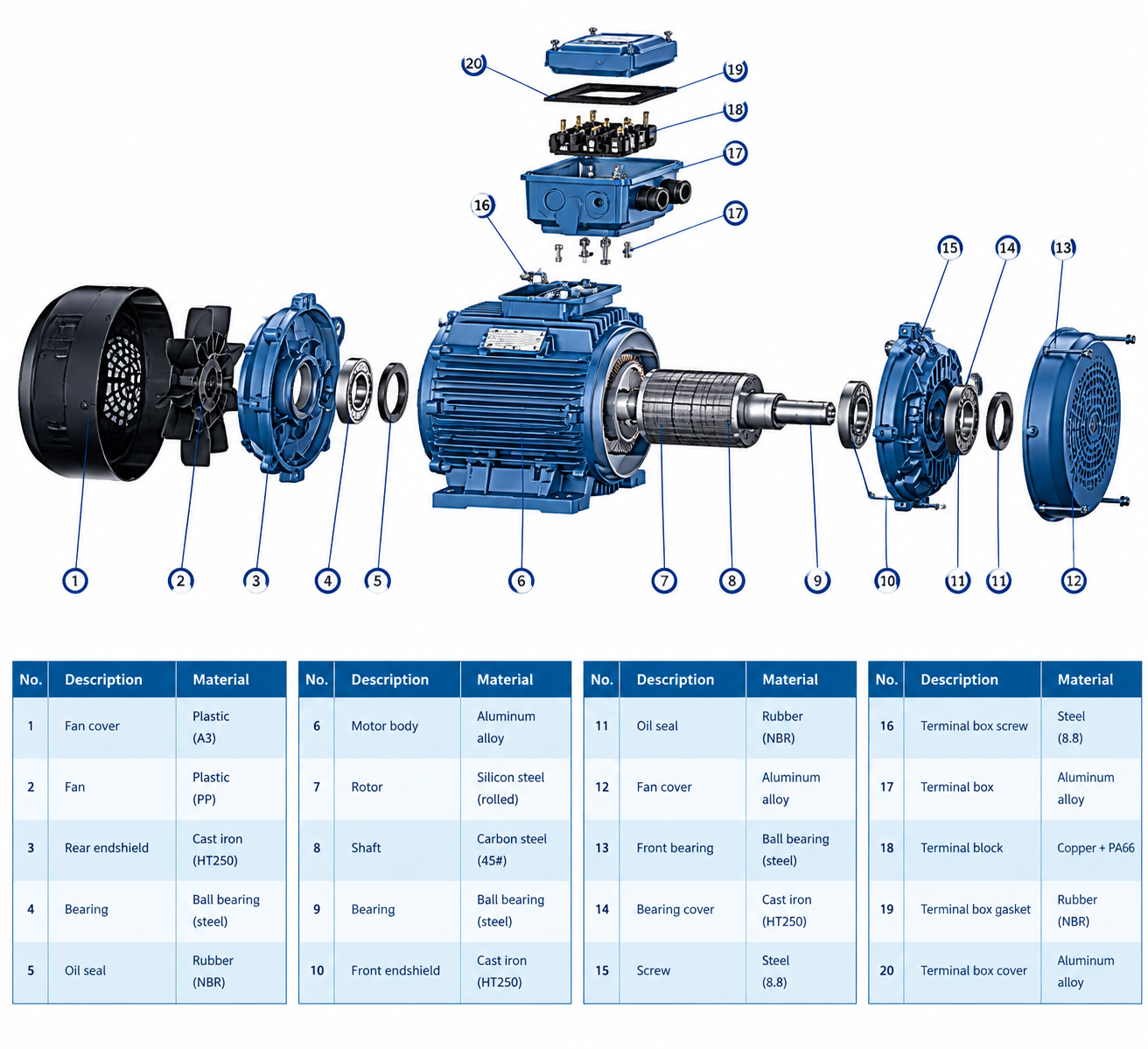

Picture|Electric Motors Structural Diagram
Purity YE3 High Efficiency Motor — Reliable Power for Stable Pump Operation
As a professional electric motor manufacturer, Purity focuses on developing high-efficiency motor solutions that reduce heat generation, energy loss, and operational risks. The YE3 series asynchronous electric motor is specially optimized for water pump applications, providing stable and efficient power output.
1. IP55 High Protection Level
The YE3 electrical motor adopts a multi-layer sealing design to effectively prevent dust and moisture from entering the motor interior, improving reliability in harsh operating environments.
2. Reinforced Structural Design
The electric motor features a reinforced bearing chamber and additional strengthening ribs to reduce vibration and noise. Combined with a bearing locking structure, it ensures smoother and more stable operation.
3. High Efficiency and Energy Saving Design
With optimized stator and rotor structures, 470 silicon steel sheets, and high-quality enamel wires, the YE3 motor reduces iron loss and copper loss, lowers temperature rise, and improves overall efficiency.
4. Long Service Life
Equipped with NSK heavy duty bearings, the motor provides stronger load capacity. The optimized cooling fan design reduces wind resistance and extends the service life of the motor.
Choosing Purity YE3 electric motor helps water pump systems achieve higher efficiency, lower energy consumption, and more reliable long-term operation.
Picture|Purity YE3 Electric Motor
Purity — Your Reliable Partner for Motor and Pump Solutions
As a professional electric motor supply partner and pump manufacturer, Purity provides efficient, stable, and reliable power solutions for various industries, helping customers achieve safer and more efficient water management.
Since its establishment in 2010, Purity has been dedicated to the research, development, and manufacturing of water pumps. With continuous innovation and strict quality control, Purity has obtained more than 130 patents, produced over 150,000 pumps annually, and supplied products to more than 140 countries and regions worldwide.
Picture|Certificates Obtained By Purity Products
A reliable pump starts with a powerful motor core. Purity YE3 high-efficiency motors deliver lower losses, higher efficiency, and longer service life to support stable pump performance.If you are looking for energy-saving and reliable motor solutions, Purity YE3 motors are an ideal choice. At the same time, Purity is seeking global distributors and partners to expand the pump market together and build long term cooperation.
